Descriere

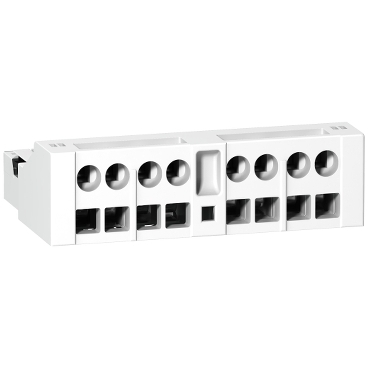

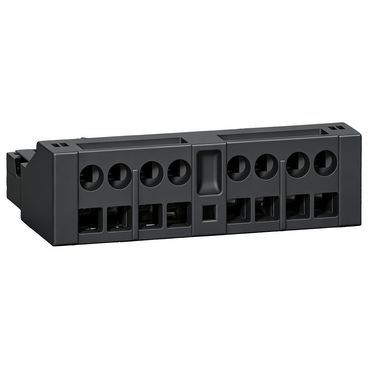

Contact Auxiliar Tesys - 2 No
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Model | Integrable |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 0.5 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 50,625 cm3 |
| weight | 17 g |
| length | 7,5 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110346657 |
| Package 2 | |
| volume | 1444 cm3 |
| weight | 175 g |
| length | 19 cm |
| width | 19 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110346654 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,191 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 260 |
| qmin | 260 |
| um | CT |
| gtin | 23389110346651 |
Accesorii
