Descriere

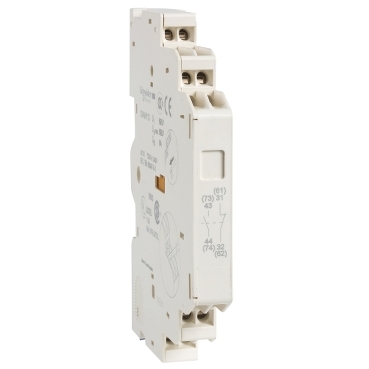

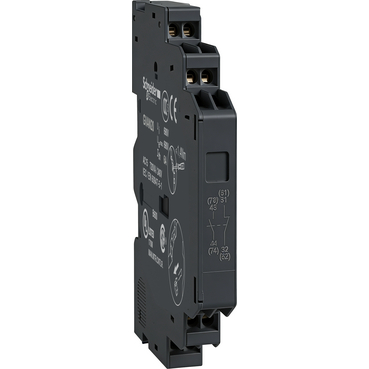

Contact Auxiliar Tesys - 1 No + 1 Nc
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3.3 A |
| Mounting/installation | |
| Mounting method | Side mounting |
| Package 1 | |
| volume | 58,5 cm3 |
| weight | 25 g |
| length | 9 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110346664 |
| Package 2 | |
| volume | 1499,4 cm3 |
| weight | 500 g |
| length | 15,3 cm |
| width | 10 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110346661 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 3,325 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43389110346662 |
