Descriere

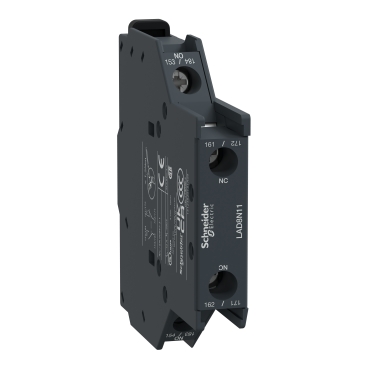

Auxiliary contact block, TeSys Deca, 1NO+1NC, side mounting, screw clamp terminals
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | - |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Mounting/installation | |
| Mounting method | Side mounting |
| Package 1 | |
| volume | 171,477 cm3 |
| weight | 60 g |
| length | 8,1 cm |
| width | 7,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110384673 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,124 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 13389110384670 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 79 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 960 |
| qmin | 960 |
| um | PF |
