Descriere

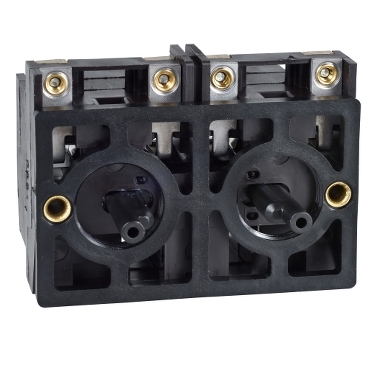

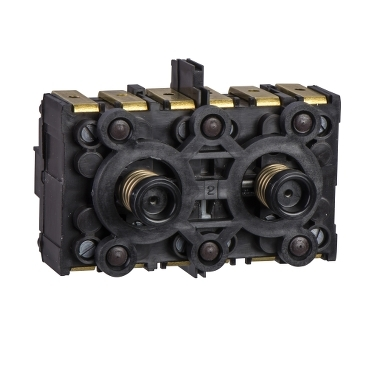

Bloc Contacte Revenire Cu Arc - 2 No - Montare Frontala, Centre De 40 Mm
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Other |
| Model/type | |
| Model | Top mounting and integrable |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 441 cm3 |
| weight | 160 g |
| length | 9 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110641080 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,016 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 42 |
| qmin | 42 |
| um | CT |
| gtin | 43389110641088 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 60,696 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 336 |
| qmin | 336 |
| um | PF |
