Descriere

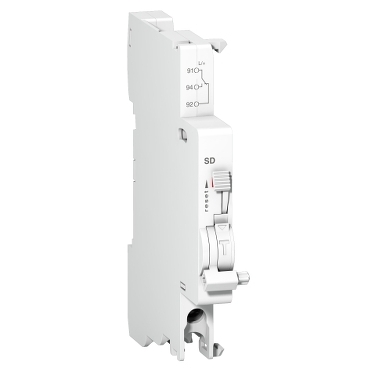

Acti9, Alarma curent Auxiliar Sd C.A, C.C
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage | 240 V |
| Rated switch current | 6 A |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 125 A |
| Voltage type for actuating | AC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 1 |
| Additional equipment | Signalling switch |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 150,4 cm3 |
| weight | 38 g |
| length | 9,4 cm |
| width | 2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480382932 |
| Package 2 | |
| volume | 2305,5 cm3 |
| weight | 511 g |
| length | 26,5 cm |
| width | 10 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480382939 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,084 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 108 |
| qmin | 108 |
| um | CT |
| gtin | 43606480382930 |
| Package 4 | |
| weight | 53,48 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 864 |
| qmin | 864 |
| um | PF |
