Descriere

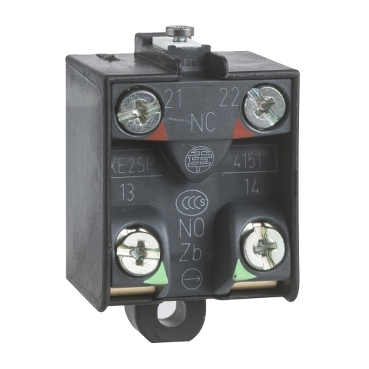

Bloc Cont. Cu Salt Al Curentului Ies. Pt. Comut. Picior 2 Trepte - 1 Nc + 1 No
Documente
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Top mounting and integrable |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Mounting/installation | |
| Mounting method | Other |
| Package 1 | |
| volume | 208,162 cm3 |
| weight | 22 g |
| length | 9,7 cm |
| width | 5,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110418484 |
