Descriere

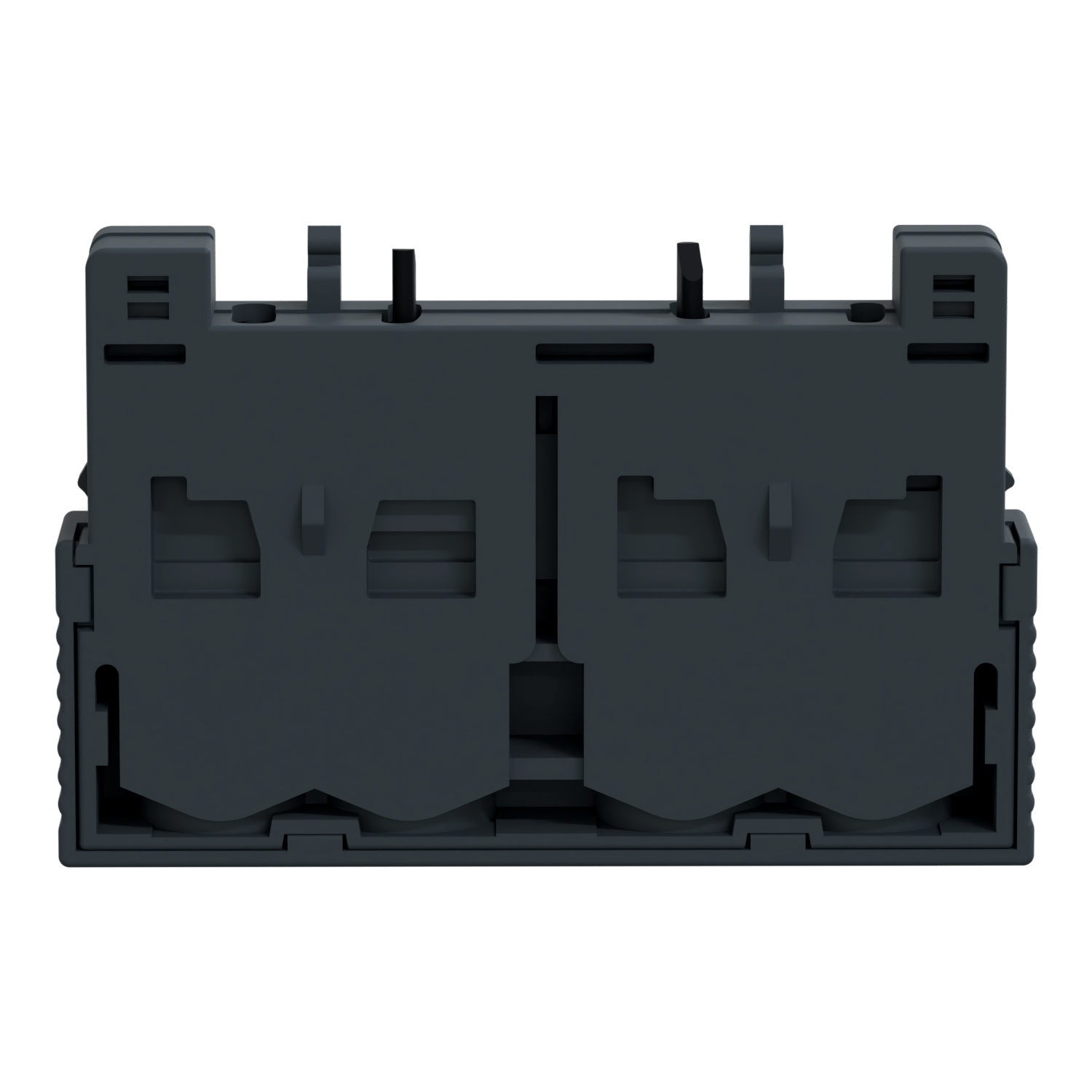

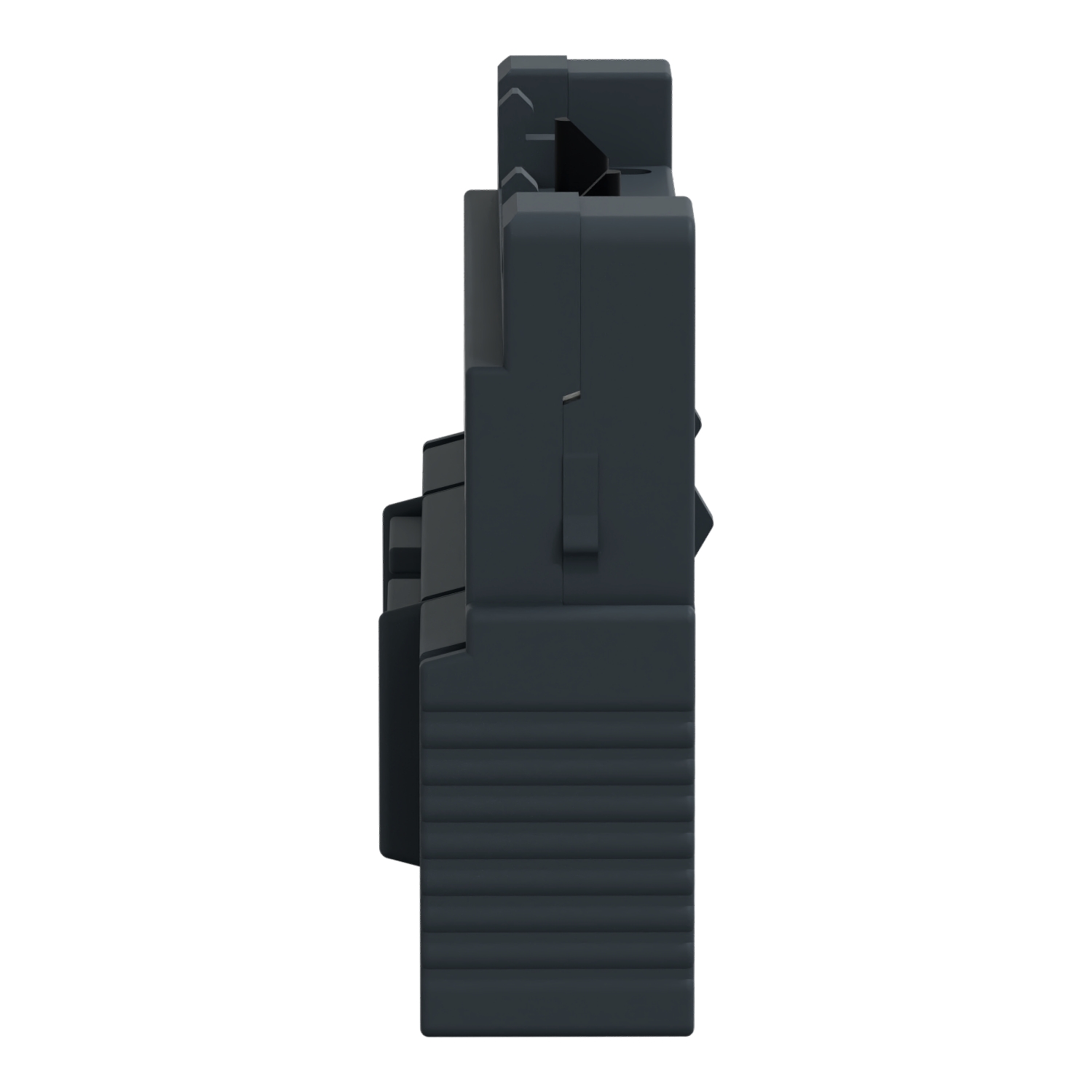

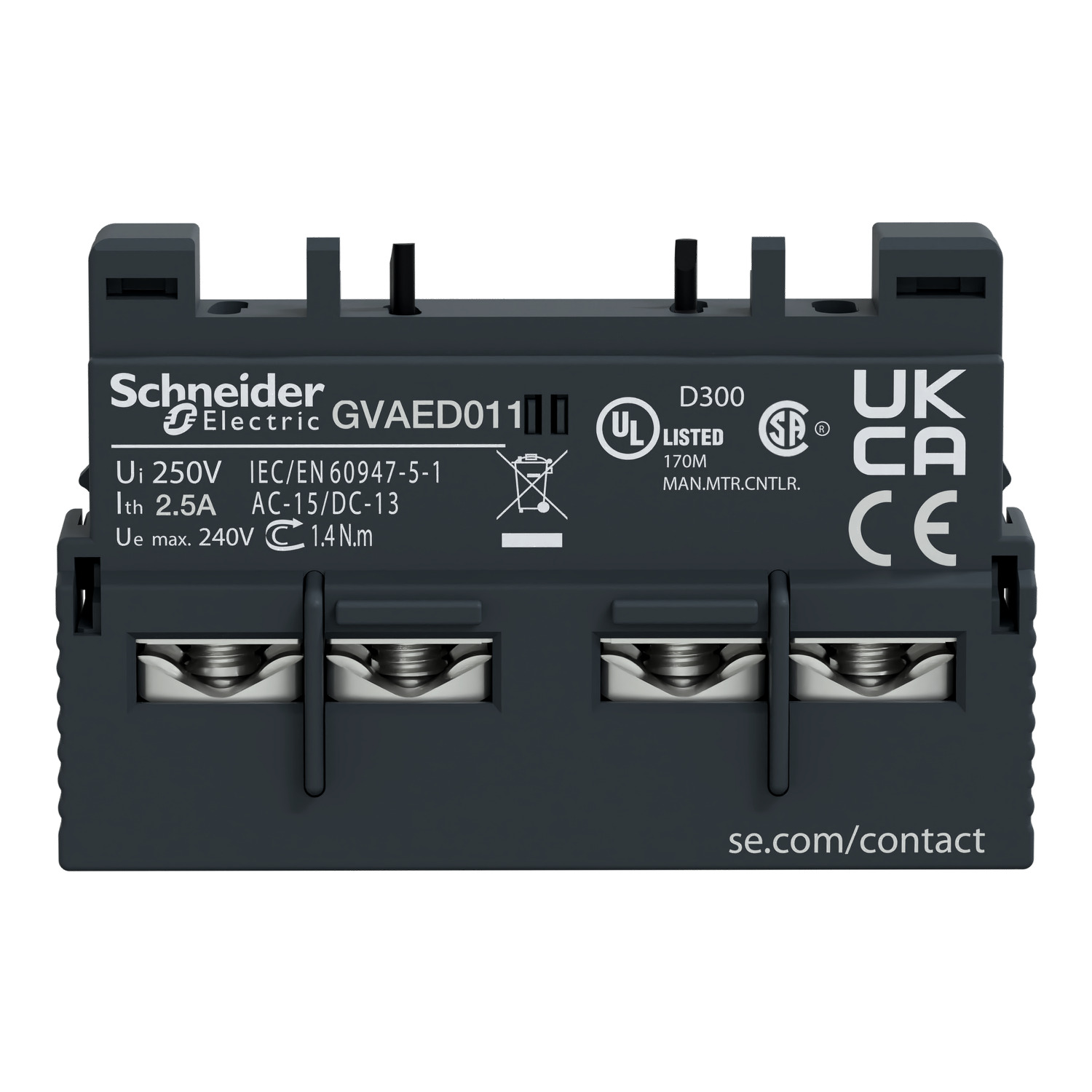

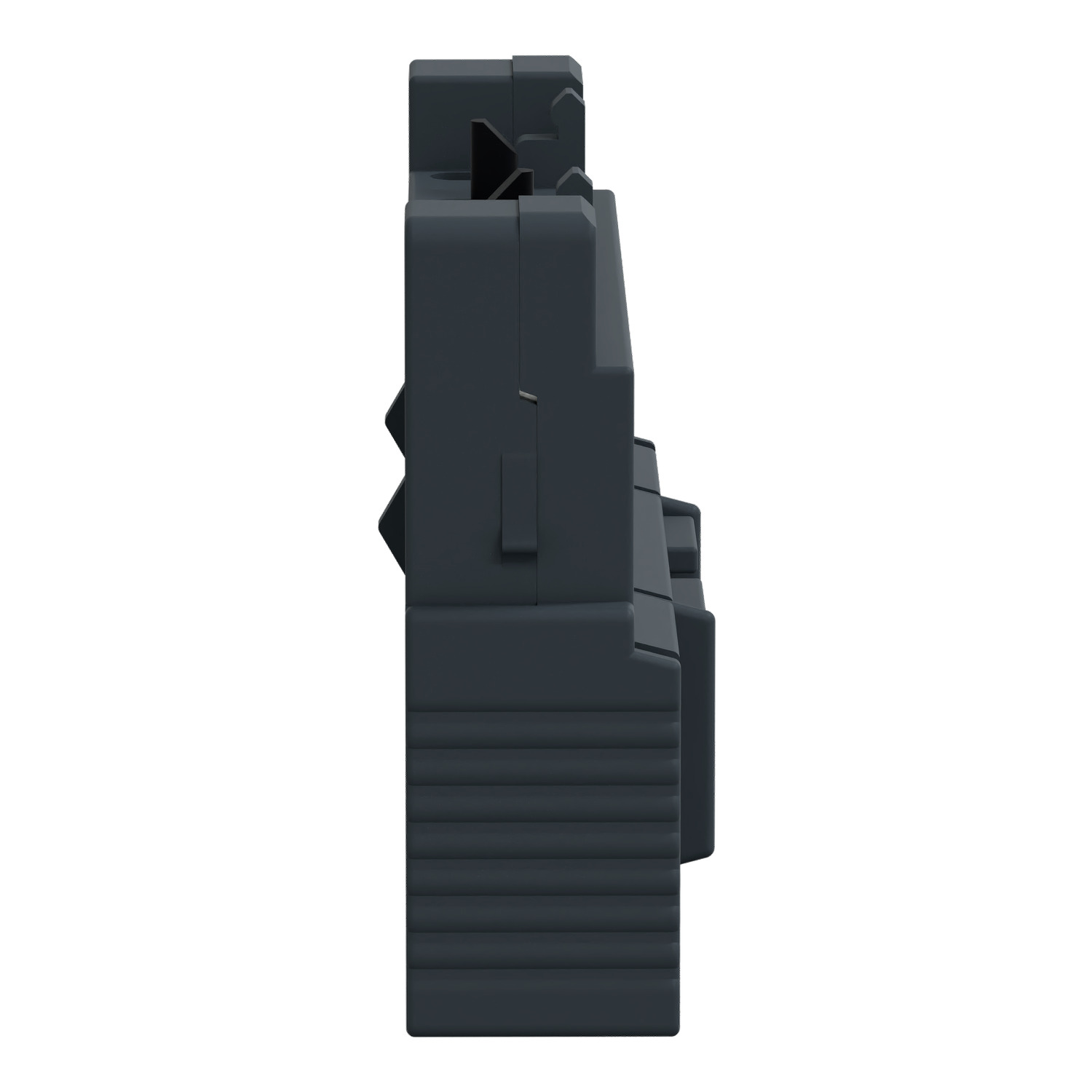

Contact Semnalizare Defectiuni Gvae - Pt. Gv3P/Gv3L - 1 No + 1 Nc
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Integrable |
| Lamp holder | None |
| Number of fault-signal switches | 1 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 0.5 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 13,5 cm3 |
| weight | 17 g |
| length | 4,5 cm |
| width | 3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119405485 |
| Package 2 | |
| volume | 1575,6 cm3 |
| weight | 174 g |
| length | 26 cm |
| width | 20,2 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119405482 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,134 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 260 |
| qmin | 260 |
| um | CT |
| gtin | 23389119405489 |
| Package 4 | |
| weight | 49,572 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 2080 |
| qmin | 2080 |
| um | PF |
