Descriere

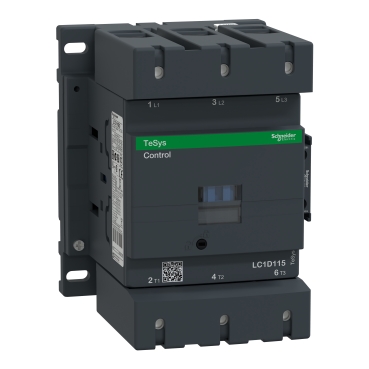

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, screw clamp terminals
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 55 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 200 A |
| Rated control supply voltage DC | 220 V |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V | 38 A |
| Rated operation current Ie at AC-3, 400 V | 115 A |
| Rated operation power at AC-4, 400 V | 18.5 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 6889,792 cm3 |
| weight | 2,502 kg |
| length | 20,8 cm |
| width | 19,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110377149 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 10,766 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 33389110377140 |
