Descriere

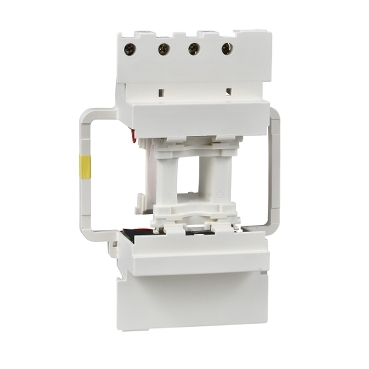

Tesys D contactor - 3P(3 NO) - AC-3 - 440 V 115 A - 230 V AC 50/60 Hz bobina
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 55 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 200 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 38 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | 115 A |
| Rated operation power at AC-4, 400 V | 18.5 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 8740 cm3 |
| weight | 2,48 kg |
| length | 23 cm |
| width | 19 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110377224 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 79,96 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 73389110377223 |
