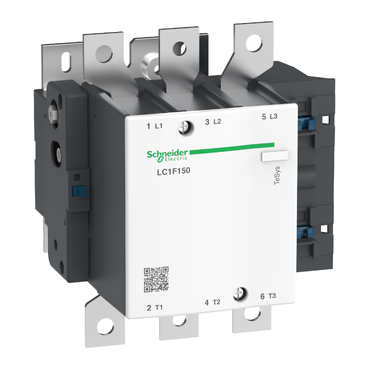

Contactor Tesys Lc1-F - 3 Poli - 150 A - Ac-3 - 440 V - Bobina 110 V C.A.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Bolt connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operation power at AC-3, 400 V | 75 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 250 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-4, 400 V | 50 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-3, 400 V | 150 A |
| Rated operation power at AC-4, 400 V | 22 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 10500 cm3 |
| weight | 4,03 kg |
| length | 25 cm |
| width | 20 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110350951 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 81,04 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 18 |
| qmin | 18 |
| um | PF |
