Descriere
TeSys D contactor - 3P(3 NO) - c.a.-3 - <= 440 V 18 A - 110 V c.a. bobina
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 32 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 18 A |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 535,808 cm3 |
| weight | 356 g |
| length | 11,2 cm |
| width | 9,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110349450 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 7,52 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43389110349458 |
| Package 3 | |
| volume | 384000 cm3 |
| weight | 129,3 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |

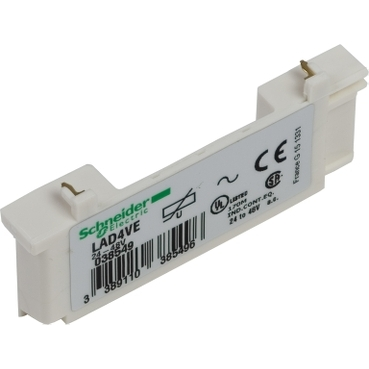

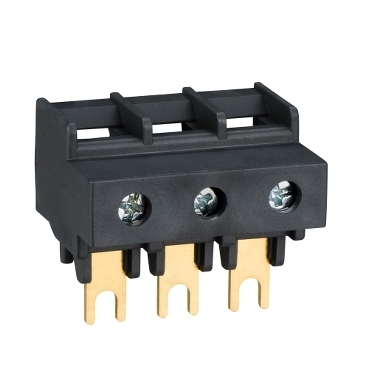

Accesorii
