Descriere

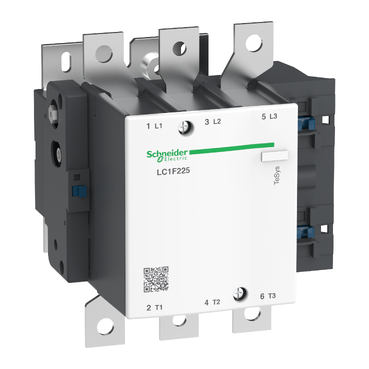

Tesys F contactor - 3P (3 NO) - AC-3 - 440 V 225 A - bobina 230 V AC
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Bolt connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 110 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 315 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | 225 A |
| Rated operation current Ie at AC-4, 400 V | 85 A |
| Voltage type for actuating | AC |
| Rated operation power at AC-4, 400 V | 40 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 10626 cm3 |
| weight | 5,241 kg |
| length | 23 cm |
| width | 21 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389118095557 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 11,132 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 23389118095551 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 74,792 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 12 |
| qmin | 12 |
| um | PF |
