Descriere

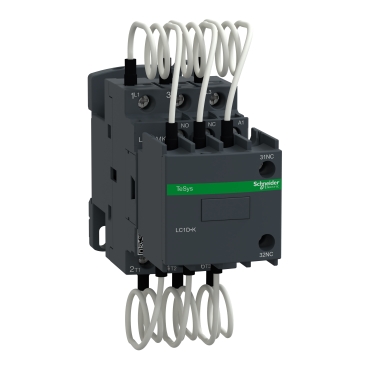

Contactor TeSys Deca, 3 poli (3NO), pentru comutarea bateriilor de condensatoare trifazate de pana la 25 kVAR/400/415 V 50 Hz (42 kVAR/690 V). Ofera o bobina de 230 V c.a. 50/60 Hz, contacte auxiliare instantanee 1NO+2NC, cu poli de anclansare anticipata montati frontal si rezistente de amortizare precablate pentru limitarea curentului. Pentru rate de operare de pana la 240 de cicluri/ora si medii de pana la 60 °C, asigura fiabilitate si durabilitate ridicate pentru aplicatii solicitante.. Compact (latime de 45 mm), montare pe sina DIN sau fixare cu suruburi. Certificat IEC 60947 si conform cu standardul pentru condensatoare de suntare IEC 60831.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Rated reactive power at 400 V, 50 Hz | 25 kvar |
| Package 1 | |
| volume | 2965,755 cm3 |
| weight | 611 g |
| length | 22,7 cm |
| width | 19,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480401855 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 4,083 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43606480401853 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 43,532 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
| gtin | 73606480401854 |
