Descriere

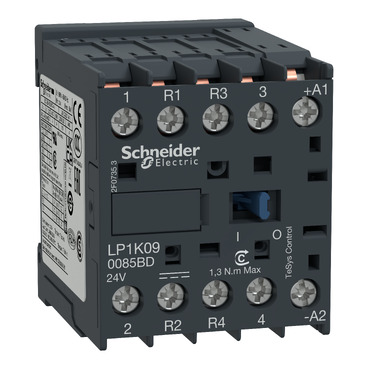

Tesys K Contactor - 4P (2 No + 2 Nc) - Ac-1
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | PCB connection |
| Number of normally closed contacts as main contact | 2 |
| Number of normally open contacts as main contact | 2 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | - |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Rated control supply voltage DC | 220 V |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-3, 400 V | - |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 175,5 cm3 |
| weight | 236 g |
| length | 6,5 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110496161 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,673 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 13389110496168 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 162,768 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 640 |
| qmin | 640 |
| um | PF |
