Descriere

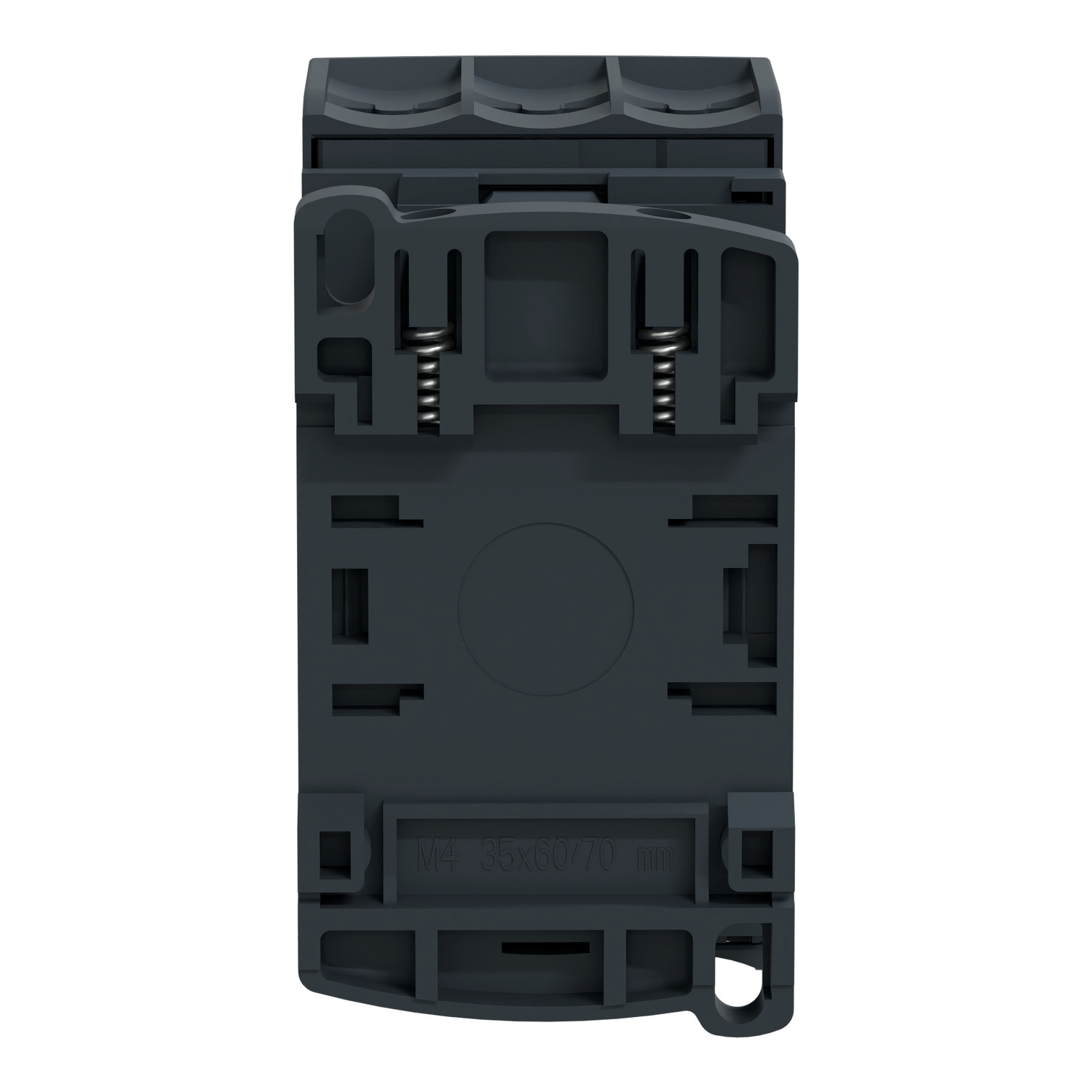

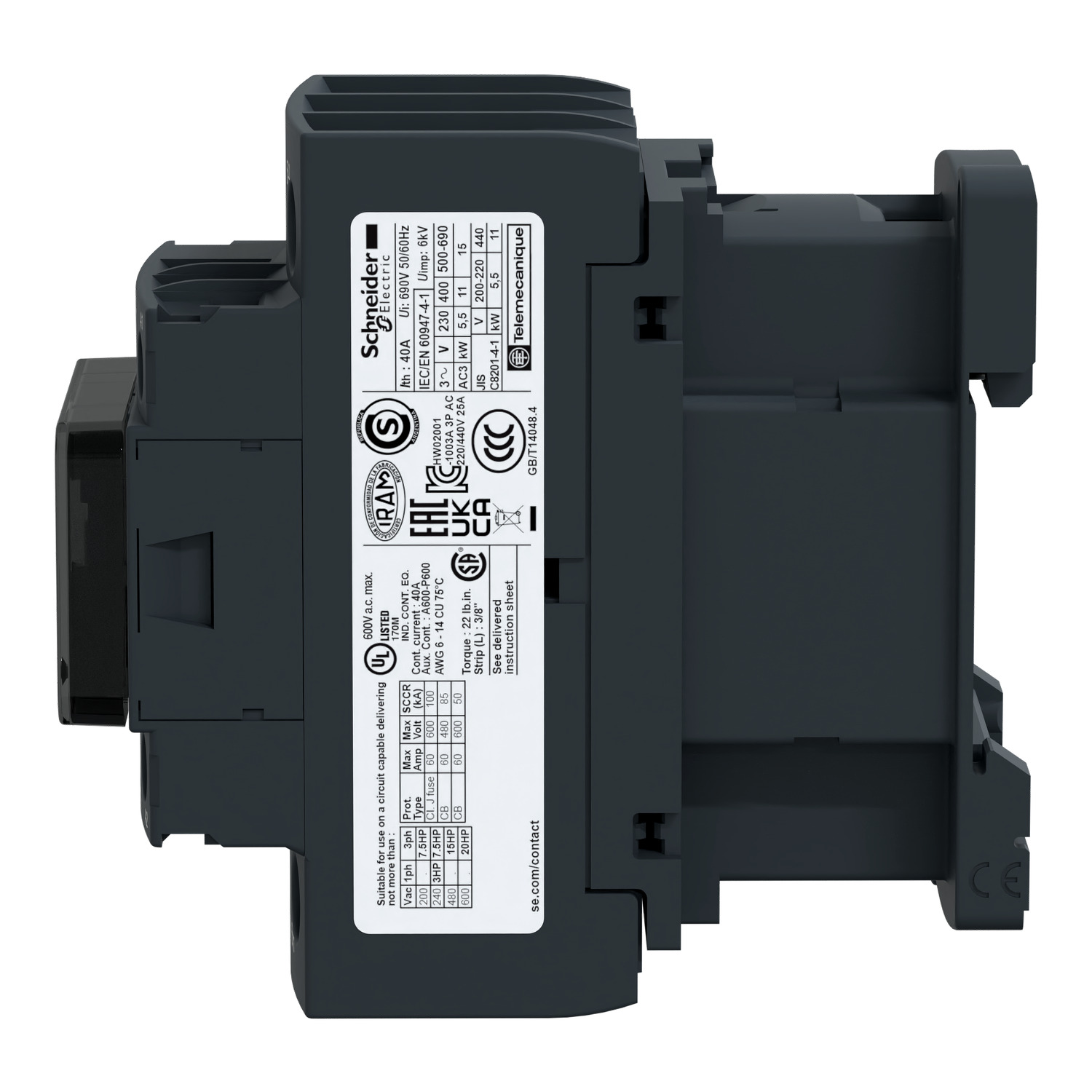

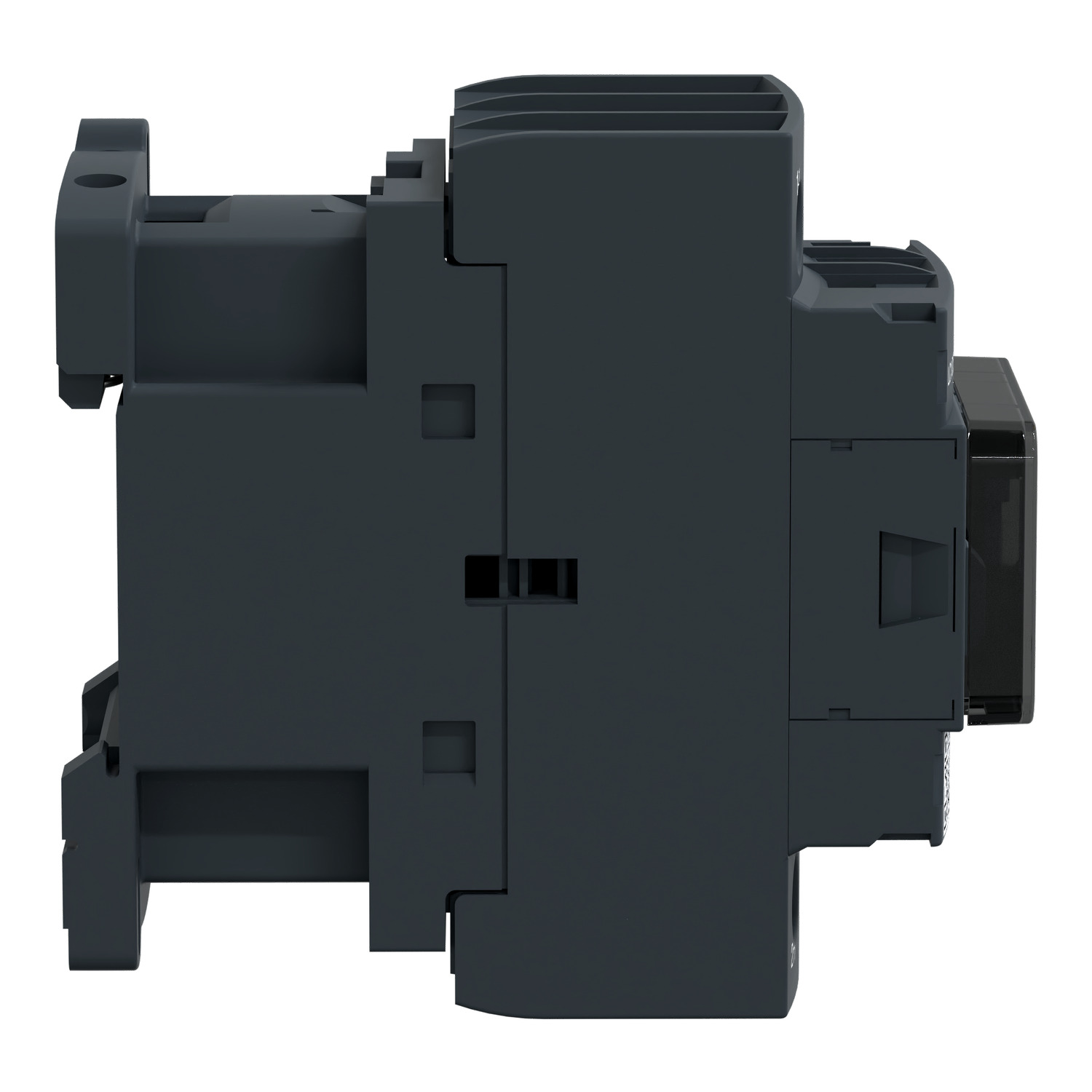

Contactor TeSys Deca, 3 poli (3NO), pentru aplicatii de control al motoarelor de pana la 32 A/690 V AC-3/3e (15 kW/400 V). Ofera o bobina de 110 V c.a. 50/60 Hz, contacte auxiliare incorporate 1NO+1NC (certificat NC oglinda), conectare prin borne cu clema cu surub. Pentru rate de operare de pana la 3600 de cicluri/ora si medii de pana la 60 °C, asigura fiabilitate si durabilitate ridicate pentru aplicatii solicitante.. Compact (latime de 45 mm), montare pe sina DIN sau fixare cu suruburi. Certificat conform mai multor standarde (IEC, UL, CSA, CCC, EAC, Marina).
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operation power at AC-3, 400 V | 15 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 50 A |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 32 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 546,468 cm3 |
| weight | 416 g |
| length | 11,3 cm |
| width | 9,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110350197 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 8,52 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43389110350195 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 146,064 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |
