Descriere

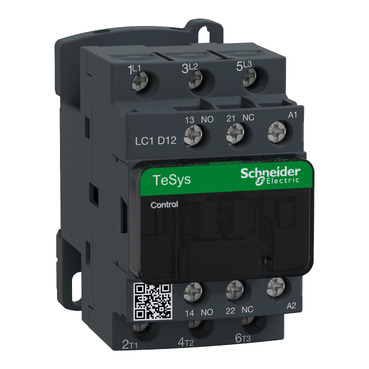

Contactor TeSys D, 3 poli (1NO+1NC), pentru aplicatii cu sarcina neinductiva de pana la 12 A/690 V AC-1. Ofera o bobina de 230 V c.a. 50/60 Hz, contacte auxiliare incorporate 1NO+1NC (certificat NC oglinda), conectare prin borne cu arc. Pentru rate de operare de pana la 3600 de cicluri/ora si medii de pana la 60 °C, asigura fiabilitate si durabilitate ridicate pentru aplicatii solicitante.. Compact (latime de 45 mm), montare pe sina DIN sau fixare cu suruburi. Certificat conform mai multor standarde (IEC, UL, CSA, CCC, EAC, Marina).
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Rated operation power NEMA | 5.6 kW |
| Rated operation current Ie at AC-1, 400 V | 25 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 12 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | 12 A |
| Rated operation power at AC-4, 400 V | 5.5 kW |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| volume | 546,25 cm3 |
| weight | 349 g |
| length | 11,5 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489602710 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 7,231 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43606489602718 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 123,712 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |
| gtin | 33606489602711 |
