Descriere
Contactor Tesys Lc1-K - 3 Poli - Ac-3 440 V 16 A - Bobina 230 V C.A.
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Rated operation current Ie at AC-3, 400 V | 16 A |
| Rated operation current Ie at AC-4, 400 V | 6 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | 2.2 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 196,416 cm3 |
| weight | 180 g |
| length | 6,2 cm |
| width | 4,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110509175 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,38 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 43389110509173 |
| Package 3 | |
| volume | 216000 cm3 |
| weight | 83,34 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 400 |
| qmin | 400 |
| um | PF |
| gtin | 73389110509174 |

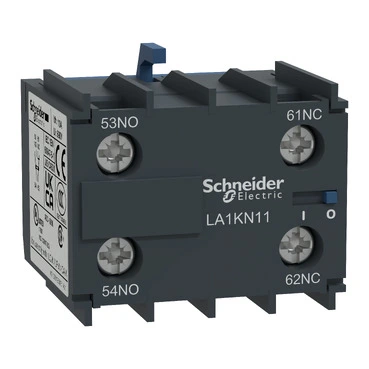

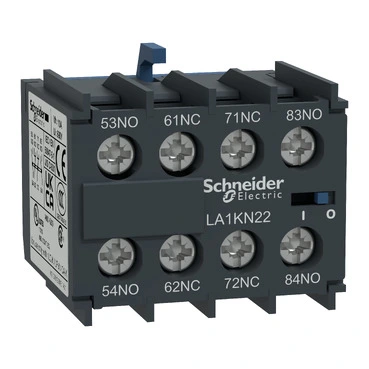

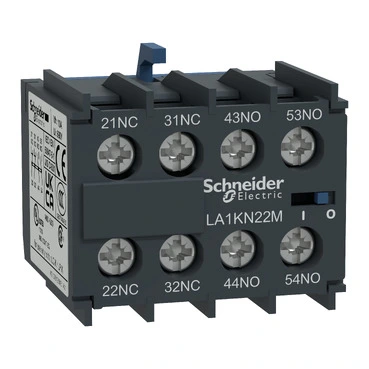

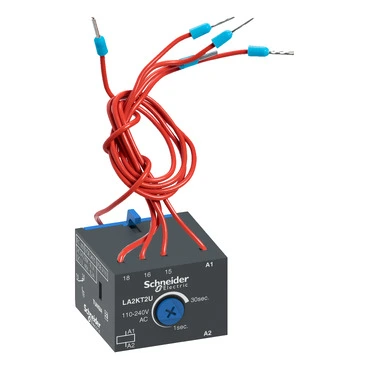

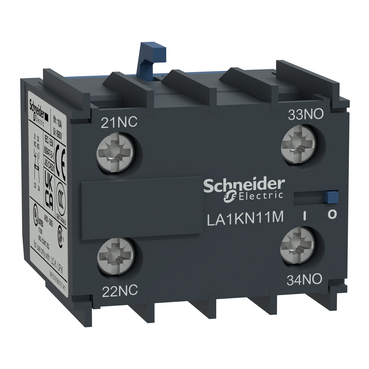

Accesorii
