Descriere

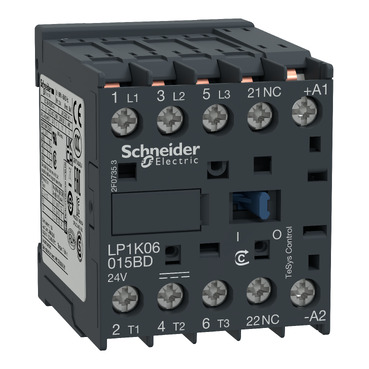

Contactor Tesys Lp1-K - 3 Poli - Ac-3 440 V 9 A - Bobina 24 V C.C.
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | PCB connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Rated control supply voltage DC | 24 V |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V | 6 A |
| Rated operation current Ie at AC-3, 400 V | 9 A |
| Rated operation power at AC-4, 400 V | 2.2 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 183,3 cm3 |
| weight | 244 g |
| length | 4,7 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110495959 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 10,208 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389110495957 |
| Package 3 | |
| volume | 216000 cm3 |
| weight | 89,9 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |
