Descriere

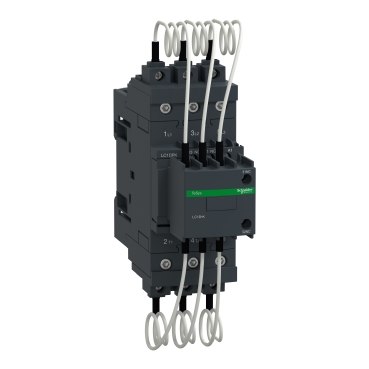

Tesys Lc1D.K Contactor Condensator Cu Sarcina - 3P - 40 Kvar - 415 V - 230 V C.A
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Rated reactive power at 400 V, 50 Hz | 40 kvar |
| Package 1 | |
| volume | 2939,625 cm3 |
| weight | 1,109 kg |
| length | 22,5 cm |
| width | 19,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480401305 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,132 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43606480401303 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 64,984 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
