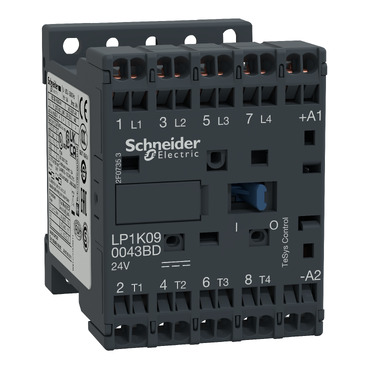

Tesys K Contactor - 4P (4 No) - Ac-1
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 4 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | - |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Rated operation current Ie at AC-4, 400 V | - |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| Rated operation current Ie at AC-3, 400 V | - |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 203,252 cm3 |
| weight | 224 g |
| length | 6,8 cm |
| width | 6,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389118020214 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,394 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389118020212 |
