Descriere
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 95A, 110V AC 50/60Hz coil, screw clamp terminals
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operation power at AC-3, 400 V | 45 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 125 A |
| Rated operation current Ie at AC-3, 400 V | 95 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 32 A |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | 15 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 1890 cm3 |
| weight | 1,554 kg |
| length | 10 cm |
| width | 13,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110451177 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 8,11 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 43389110451175 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 133,7 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |

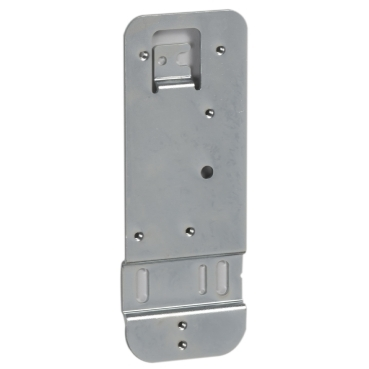

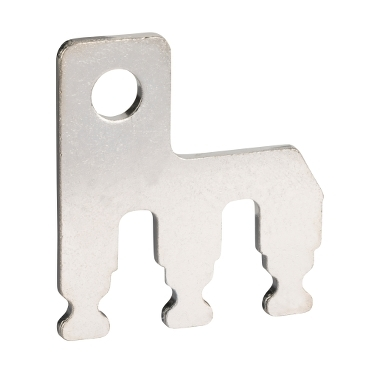

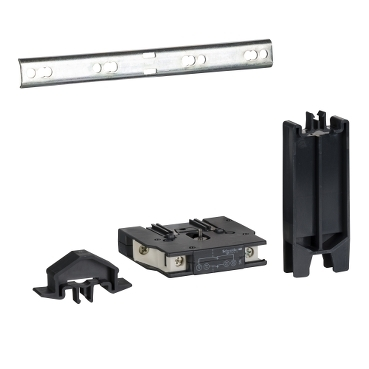

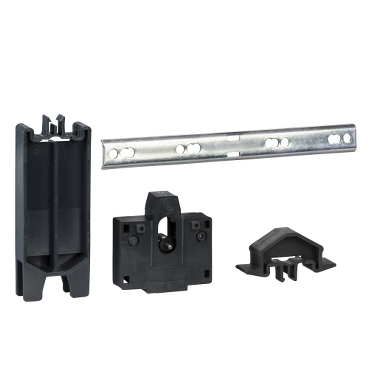

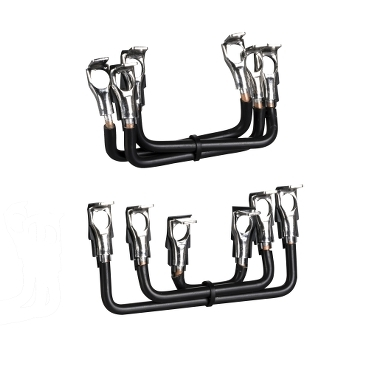

Accesorii
