Descriere

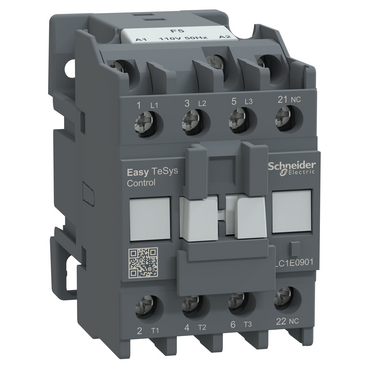

Contact Easy TeSys 3P(3 NO), AC-3, = 440V bob. 9A, 110 V AC
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 25 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 9 A |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 318,75 cm3 |
| weight | 341 g |
| length | 8,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480327629 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 12,564 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 43606480327627 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 209,024 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 576 |
| qmin | 576 |
| um | PF |
