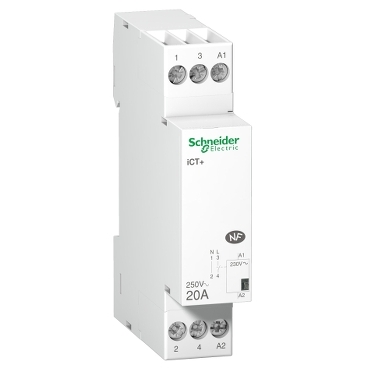

Contactor iCT PLUS 20A 1P UC 230Vca

Cod produs: A9C15030

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480376955

iCT plus 20A 1P Uc 230VAC

Model/type
With day/night function	No
Measurements
Built-in depth	43.5 mm
Width in number of modular spacings	1
Electrical
Max. load fluorescent lamp (parallel compensated)	3700 VA
Max. incandescent lamp load	3700 W
Max. load fluorescent lamp	3700 VA
Rated excitation voltage	230 V
Max. load fluorescent lamp (Duo circuit)	-
Rated operation current	20 A
Rated operating voltage	250 V
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Other
Utility category	7
Connection
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
Setting/control
Slider for hand switch	No
Options
Additional equipment possible	No
Hum-free	No
Protection
Degree of protection (IP)	IP20
Package 1
volume	213,75 cm3
weight	90 g
length	9,5 cm
width	3 cm
qmax	1
qmin	1
um	C62
gtin	3606480376955
Package 2
volume	18000 cm3
weight	5,994 kg
length	40 cm
width	30 cm
qmax	63
qmin	63
um	CT
gtin	43606480376953

Afiseaza mai multe specificatii
