Descriere

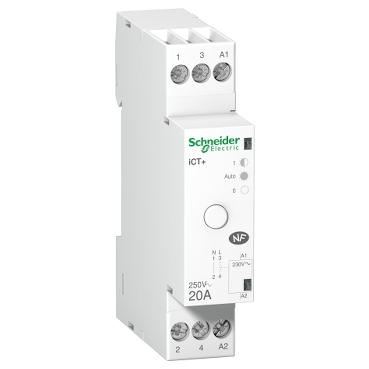

iCT plus HC 20A 1P Uc 230VAC
Documente
Fisa tehnica
Specificatii
| Model/type | |
| With day/night function | No |
| Measurements | |
| Built-in depth | 43.5 mm |
| Width in number of modular spacings | 1 |
| Electrical | |
| Max. load fluorescent lamp (parallel compensated) | 3700 VA |
| Max. incandescent lamp load | 3700 W |
| Max. load fluorescent lamp | 3700 VA |
| Rated excitation voltage | 230 V |
| Max. load fluorescent lamp (Duo circuit) | - |
| Rated operation current | 20 A |
| Rated operating voltage | 250 V |
| Voltage type (operating voltage) | AC |
| Voltage type (excitation voltage) | AC |
| Other | |
| Utility category | 7 |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Setting/control | |
| Slider for hand switch | Yes |
| Options | |
| Additional equipment possible | No |
| Hum-free | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 195,3 cm3 |
| weight | 89 g |
| length | 9,3 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480376962 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,93 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 63 |
| qmin | 63 |
| um | CT |
| gtin | 43606480376960 |
