Descriere

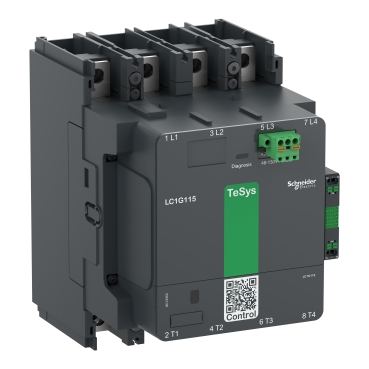

Contactor TeSys Giga, 4P (4 NO), AC-1 <= 440V 275A, versiune standard, bobina 48..130V c.a./c.c.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Bolt connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 4 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 48 V |
| Rated control supply voltage AC 60 Hz | 48 V |
| Rated operation power at AC-3, 400 V | 75 kW |
| Rated operation power NEMA | 100 kW |
| Rated operation current Ie at AC-1, 400 V | 275 A |
| Voltage type for actuating | AC/DC |
| Rated operation current Ie at AC-4, 400 V | 150 A |
| Rated operation current Ie at AC-3, 400 V | - |
| Rated control supply voltage DC | 48 V |
| Rated operation power at AC-4, 400 V | 75 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 25467,75 cm3 |
| weight | 5,679 kg |
| length | 38,5 cm |
| width | 27 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481922038 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 53,932 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 8 |
| qmin | 8 |
| um | PF |
