Descriere

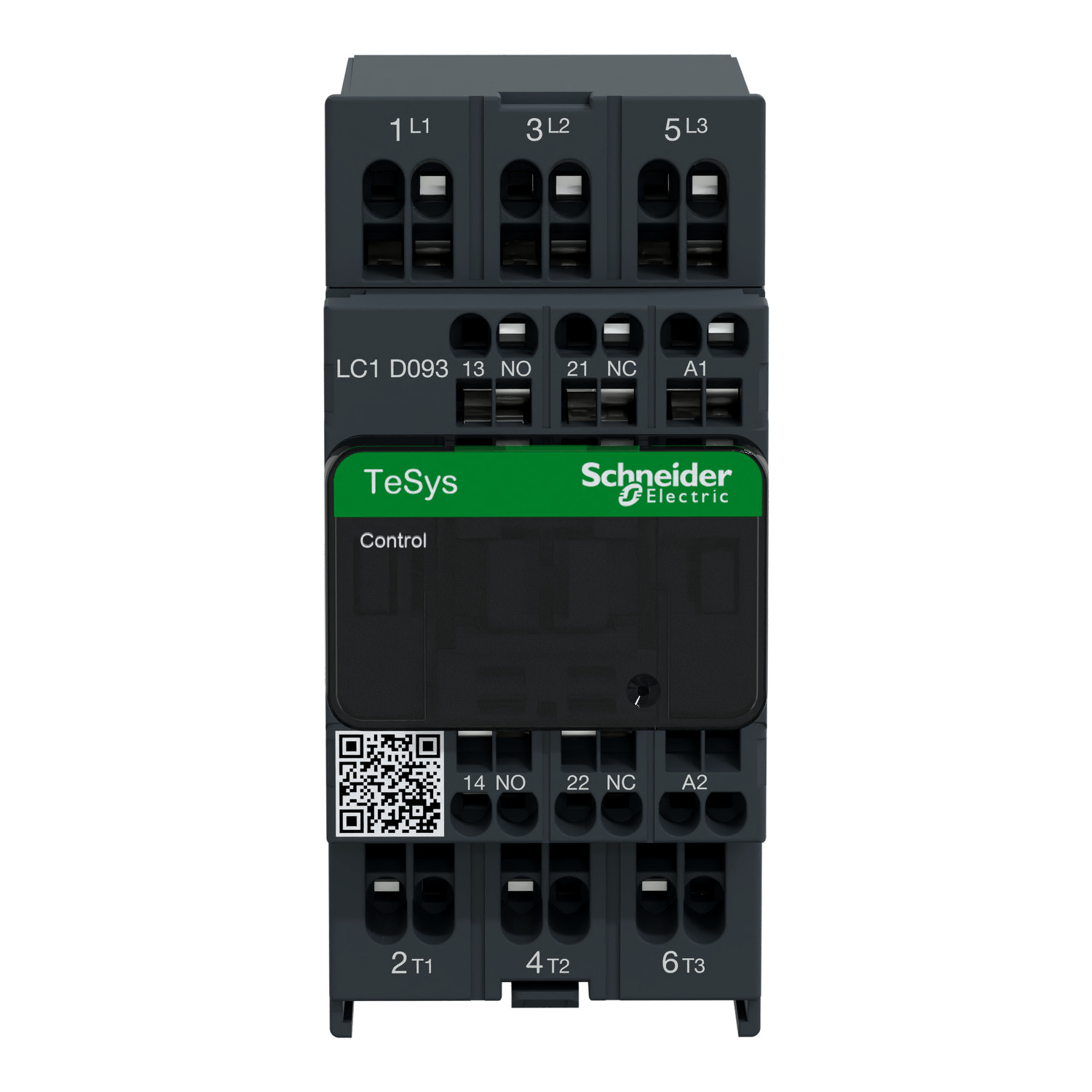

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V AC 50/60Hz coil, spring terminals
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 48 V |
| Rated control supply voltage AC 60 Hz | 48 V |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 6 A |
| Rated operation current Ie at AC-3, 400 V | 9 A |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | 2.2 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 583,495 cm3 |
| weight | 366 g |
| length | 10,3 cm |
| width | 10,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110802238 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,75 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 15 |
| qmin | 15 |
| um | CT |
| gtin | 13389110802235 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 100 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
