Descriere

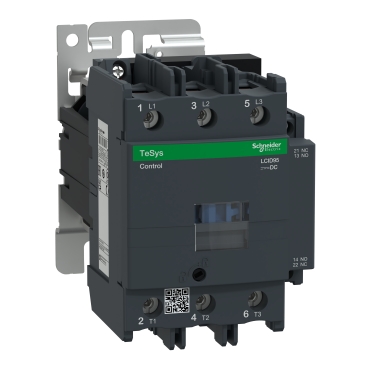

Tesys D Contactor - 3P(3 No) - Ac-3 -
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 45 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 125 A |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V | 32 A |
| Rated operation current Ie at AC-3, 400 V | 95 A |
| Rated control supply voltage DC | 72 V |
| Rated operation power at AC-4, 400 V | 15 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 2940 cm3 |
| weight | 2,613 kg |
| length | 10 cm |
| width | 14 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110451917 |
