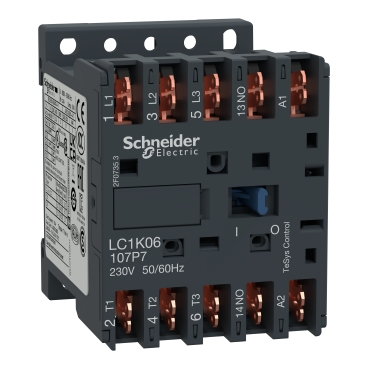

Contactor Tesys Lc1-K - 3 Poli - Ac-3 440 V 6 A - Bobina 230 V C.A.
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Flat plug-in connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 2.2 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Rated operation current Ie at AC-3, 400 V | 6 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 4 A |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | 1.5 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 209,916 cm3 |
| weight | 188 g |
| length | 6,8 cm |
| width | 6,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110488227 |
