Descriere

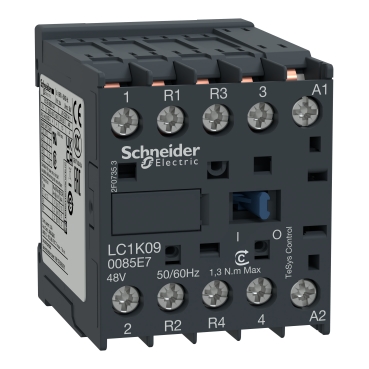

Contactor Tesys Lc1-K - 4 Poli (2No + 2Nc) - Ac-1 440 V 20 A - Bobina 110 V C.A.
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | PCB connection |
| Number of normally closed contacts as main contact | 2 |
| Number of normally open contacts as main contact | 2 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operation power at AC-3, 400 V | - |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 20 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 193,44 cm3 |
| weight | 206 g |
| length | 6,2 cm |
| width | 4,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110489583 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 13,444 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 64 |
| qmin | 64 |
| um | CT |
| gtin | 13389110489580 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 223,104 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 1024 |
| qmin | 1024 |
| um | PF |
