Descriere

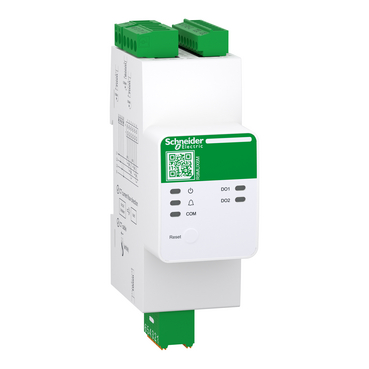

Contor de energie cablat Resi9, universal, 80A/160A/250A, 6 circuite, 1Ph/3Ph
Documente
Specificatii
| Electrical | |
| Max. current (Imax) | 250 A |
| Nominal voltage (Un) L-L | 304 V |
| Nominal current (In) | 80 A |
| Nominal voltage (Un) N-L | 100 V |
| Other | |
| Frequency | 45 Hz |
| Pulse output | Electrical |
| Pulse rate | 400 Imp/kWh (kvarh) |
| Accuracy class | B |
| Options | |
| Calibrated | Yes |
| Escapement mechanism | No |
| EEC40 signature | - |
| Model/type | |
| Model | Measurement transformer |
| Pulse type | D0 |
| Energy type | Effective power |
| Number of positions total (counter) | - |
| Tariff type | One-tariff |
| Type of indication | Digital |
| Pole type | Four conductor |
| Measurement type load profile | - |
| With lock code | No |
| Type of meter | Electronic |
| Approval/certification | |
| Approval | Domestic |
| Measurements | |
| Width in number of modular spacings | 2 |
| Height | 113 mm |
| Width | 36 mm |
| Depth | 70 mm |
| Setting/control | |
| Tariff control | - |
| Communication | |
| Type of interface | Modbus |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 2 |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Application | |
| Suitable for | Purchase/supply |
| Package 1 | |
| volume | 415,8 cm3 |
| weight | 150 g |
| length | 12 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606487091301 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,84 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 13606487091308 |
