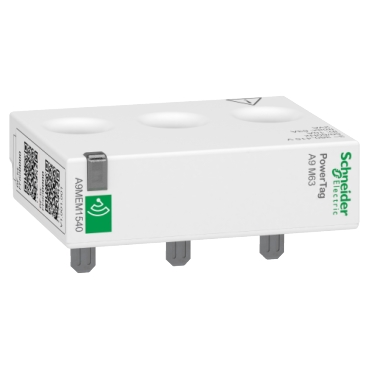

Contor energie Powertag 3P sus si jos

Cod produs: A9MEM1540

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480909153

Descriere

Acti9, Powertag, 3P, Pozitie Sus/Jos, Maximum 63A, Senzor De Energie

Documente

logo-pdf Contor energie Powertag 3P sus si jos

Link

Specificatii

Electrical
Max. current (Imax)	63 A
Nominal voltage (Un) L-L	380 V
Nominal current (In)	63 A
Nominal voltage (Un) N-L	-
Other
Frequency	50 Hz
Pulse output	None
Pulse rate	-
Accuracy class	B
Options
Calibrated	Yes
Escapement mechanism	No
EEC40 signature	No
Model/type
Model	Direct measurement
Pulse type	-
Energy type	Effective power and reactive power
Number of positions total (counter)	-
Tariff type	One-tariff
Type of indication	None
Pole type	Three conductor
Measurement type load profile	No
With lock code	No
Type of meter	Electronic
Approval/certification
Approval	Domestic
Measurements
Width in number of modular spacings	3
Height	16.5 mm
Width	54 mm
Depth	43 mm
Setting/control
Tariff control	-
Communication
Type of interface	Other
Protection
Degree of protection (IP)	IP20
Degree of protection (NEMA)	1
Mounting/installation
Mounting method	Plug-in technique
Application
Suitable for	Purchase
Package 1
volume	255 cm3
weight	55 g
length	8,5 cm
width	6 cm
qmax	1
qmin	1
um	C62
gtin	3606480909153
Package 2
volume	18000 cm3
weight	2,986 kg
length	40 cm
width	30 cm
qmax	48
qmin	48
um	CT
gtin	43606480909151

Afiseaza mai multe specificatii

CHORUS versiune BETA

Contor energie Powertag 3P sus si jos

Descriere

Documente

Specificatii

ACTI9 IK60N 3P 25A C

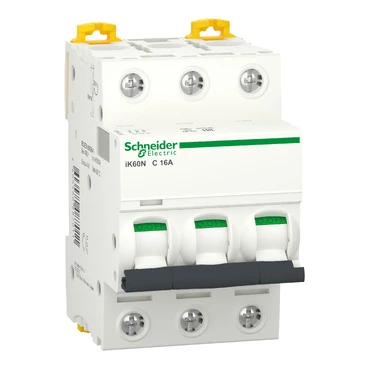

ACTI9 IK60N 3P 16A C

ACTI9 IK60N 3P 32A C

ACTI9 IK60N 3P 40A C

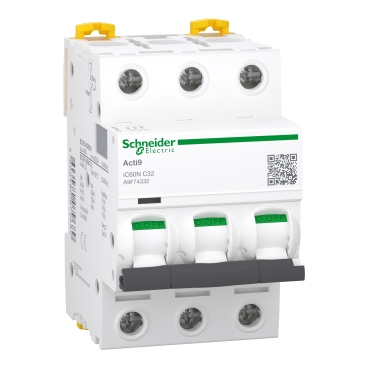

ACTI9 IC60N 3P 32A C

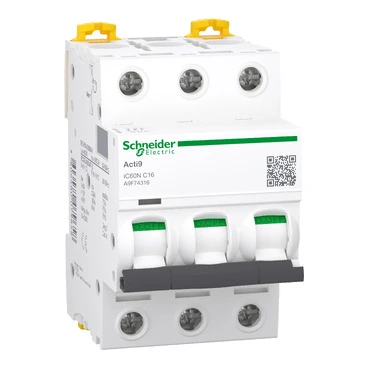

ACTI9 IC60N 3P 16A C

ACTI9 IC60H 3P 32A C

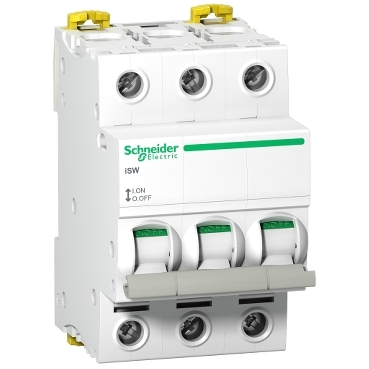

ISW separ. sarcina 3P 63A 415VAC

ACTI9 IK60N 3P 10A C

ACTI9 IK60N 3P 20A C

ACTI9 ISW separator sarcina 3P 40A 415V

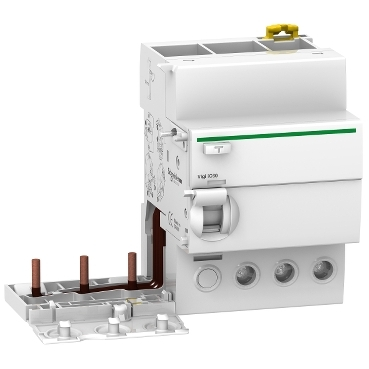

VIGI IC60 3P 63A 30MA AC

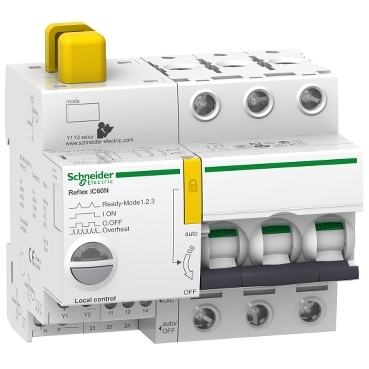

ACTI 9 REFLEX IC60N TI24 10 A 3P curba C

ACTI 9 REFLEX IC60N TI24 16 A 3P curba C

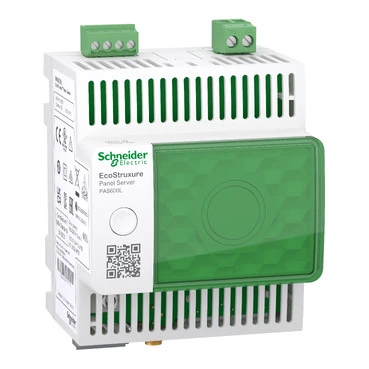

EcoStruxure Panel Server - universal wireless, concentrator modbus 110-277 Vc.a./c.c.
