Descriere

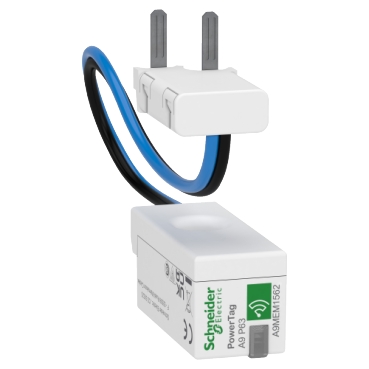

Contor energie Powertag - P63 -1P+N aval
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Max. current (Imax) | 63 A |
| Nominal voltage (Un) L-L | - |
| Nominal current (In) | 63 A |
| Nominal voltage (Un) N-L | 220 V |
| Other | |
| Frequency | 50 Hz |
| Pulse output | None |
| Pulse rate | - |
| Accuracy class | B |
| Options | |
| Calibrated | Yes |
| Escapement mechanism | No |
| EEC40 signature | No |
| Model/type | |
| Model | Direct measurement |
| Pulse type | - |
| Energy type | Effective power and reactive power |
| Number of positions total (counter) | - |
| Tariff type | One-tariff |
| Type of indication | None |
| Pole type | Single phase |
| Measurement type load profile | No |
| With lock code | No |
| Type of meter | Electronic |
| Approval/certification | |
| Approval | Domestic |
| Measurements | |
| Width in number of modular spacings | 1 |
| Height | 20 mm |
| Width | 18 mm |
| Depth | 44.5 mm |
| Setting/control | |
| Tariff control | - |
| Communication | |
| Type of interface | Other |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Mounting/installation | |
| Mounting method | Plug-in technique |
| Application | |
| Suitable for | Purchase |
| Package 1 | |
| volume | 278,038 cm3 |
| weight | 43 g |
| length | 8,6 cm |
| width | 6,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481380418 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 2,428 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 48 |
| qmin | 48 |
| um | CT |
| gtin | 13606481380415 |
