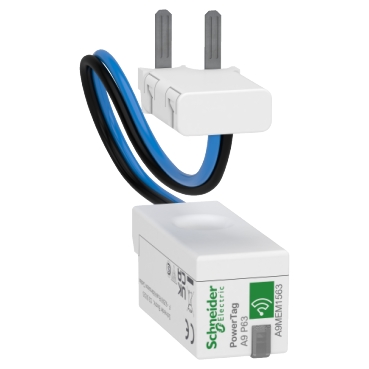

Contor energie Powertag - P63 -1P+N RCBO

Cod produs: A9MEM1563

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606481380425

Contor energie Powertag - P63 -1P+N RCBO

Electrical
Max. current (Imax)	63 A
Nominal voltage (Un) L-L	-
Nominal current (In)	63 A
Nominal voltage (Un) N-L	220 V
Other
Frequency	50 Hz
Pulse output	None
Pulse rate	-
Accuracy class	B
Options
Calibrated	Yes
Escapement mechanism	No
EEC40 signature	No
Model/type
Model	Direct measurement
Pulse type	-
Energy type	Effective power and reactive power
Number of positions total (counter)	-
Tariff type	One-tariff
Type of indication	None
Pole type	Single phase
Measurement type load profile	No
With lock code	No
Type of meter	Electronic
Approval/certification
Approval	Domestic
Measurements
Width in number of modular spacings	1
Height	20 mm
Width	18 mm
Depth	44.5 mm
Setting/control
Tariff control	-
Communication
Type of interface	Other
Protection
Degree of protection (IP)	IP20
Degree of protection (NEMA)	1
Mounting/installation
Mounting method	Plug-in technique
Application
Suitable for	Purchase
Package 1
volume	384,8 cm3
weight	43 g
length	8 cm
width	7,4 cm
qmax	1
qmin	1
um	C62
gtin	3606481380425
Package 2
volume	18000 cm3
weight	2,43 kg
length	40 cm
width	30 cm
qmax	30
qmin	30
um	CT
gtin	43606481380423

Afiseaza mai multe specificatii
