Descriere

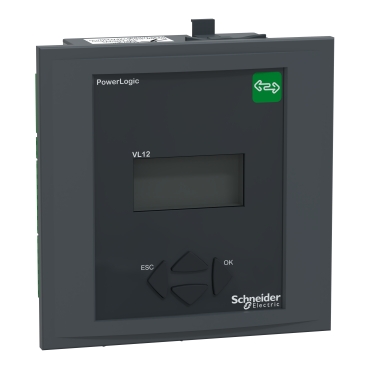

VarPlus Logic este un regulator de factor de putere simplu si eficient pentru un echipament automat de corectie a factorului de putere, pentru a mentine factorul de putere. Este un releu simplu si inteligent care masoara, monitorizeaza si controleaza energia reactiva. Este livrat cu punere in functiune usoara, detectarea si monitorizarea dimensiunii treptei, impreuna cu diverse alarme. VPL12 poate fi utilizat pentru 12 trepte intr-un echipament PFC.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | 144 mm |
| Depth | 59 mm |
| Height | 144 mm |
| Performance | |
| Power | - |
| Electrical | |
| Number of phases | 3 |
| Supply voltage | 90 V |
| Voltage type (supply voltage) | AC |
| Rated operation current Ie at AC-1 | 6 A |
| Reduction apparent power | 0 kVA |
| Reduction line voltage | 0 V |
| Rated operation current Ie at AC-15, 400 V | 6 A |
| Reduction reactive power | 0 kvar |
| Rated operation current Ie at AC-3 | 6 A |
| Communication | |
| Supporting protocol for Modbus | Yes |
| With communication interface Ethernet | No |
| With communication interface RS-485 | Yes |
| With communication interface RS-232 | No |
| Supporting protocol for CAN | No |
| Consumption | |
| Reduction energy consumption | 0 % |
| Application | |
| Application | Power quality |
| Package 1 | |
| volume | 2996,256 cm3 |
| weight | 727 g |
| length | 18,4 cm |
| width | 17,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480800115 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,155 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 43606480800113 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 58,408 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 64 |
| qmin | 64 |
| um | PF |
