Descriere

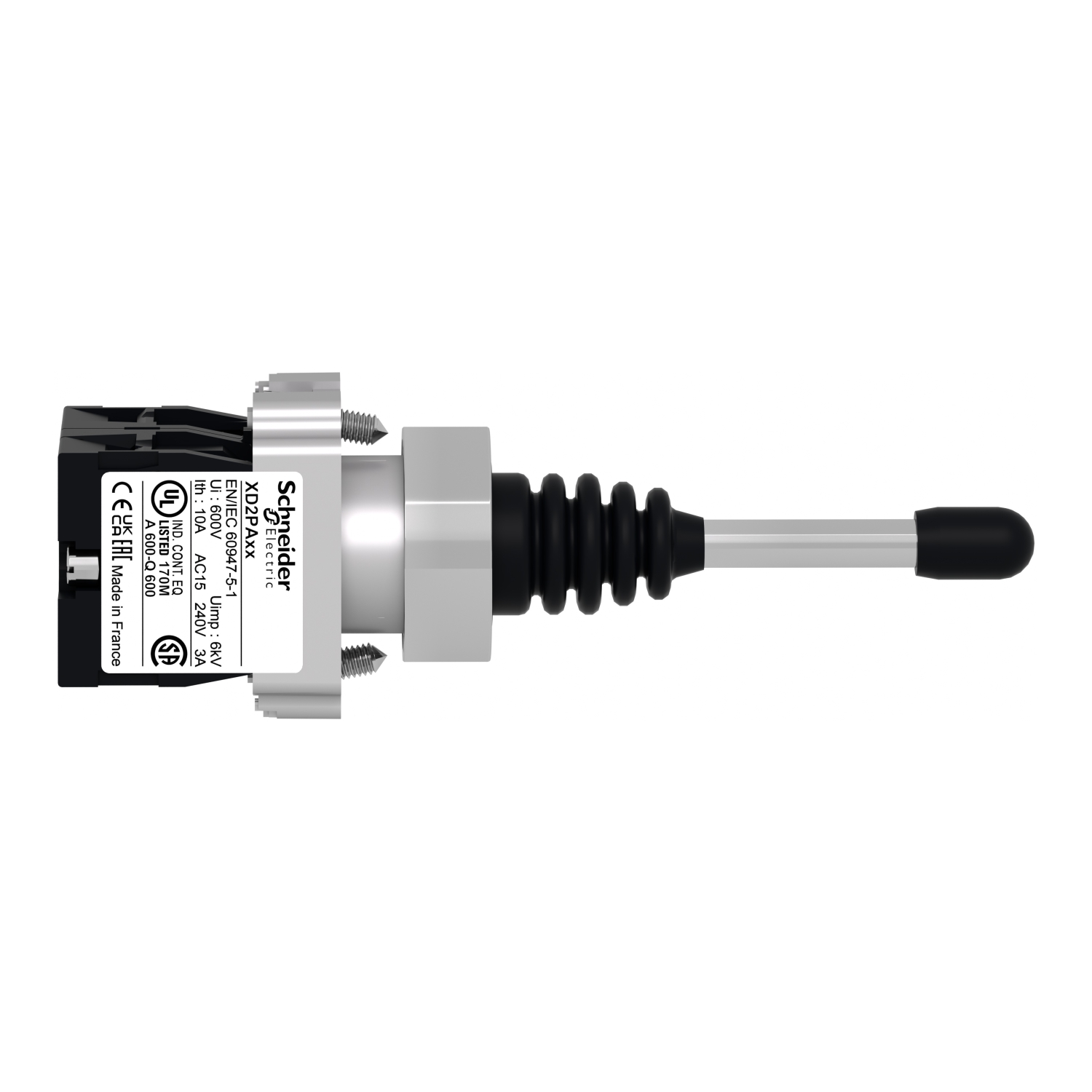

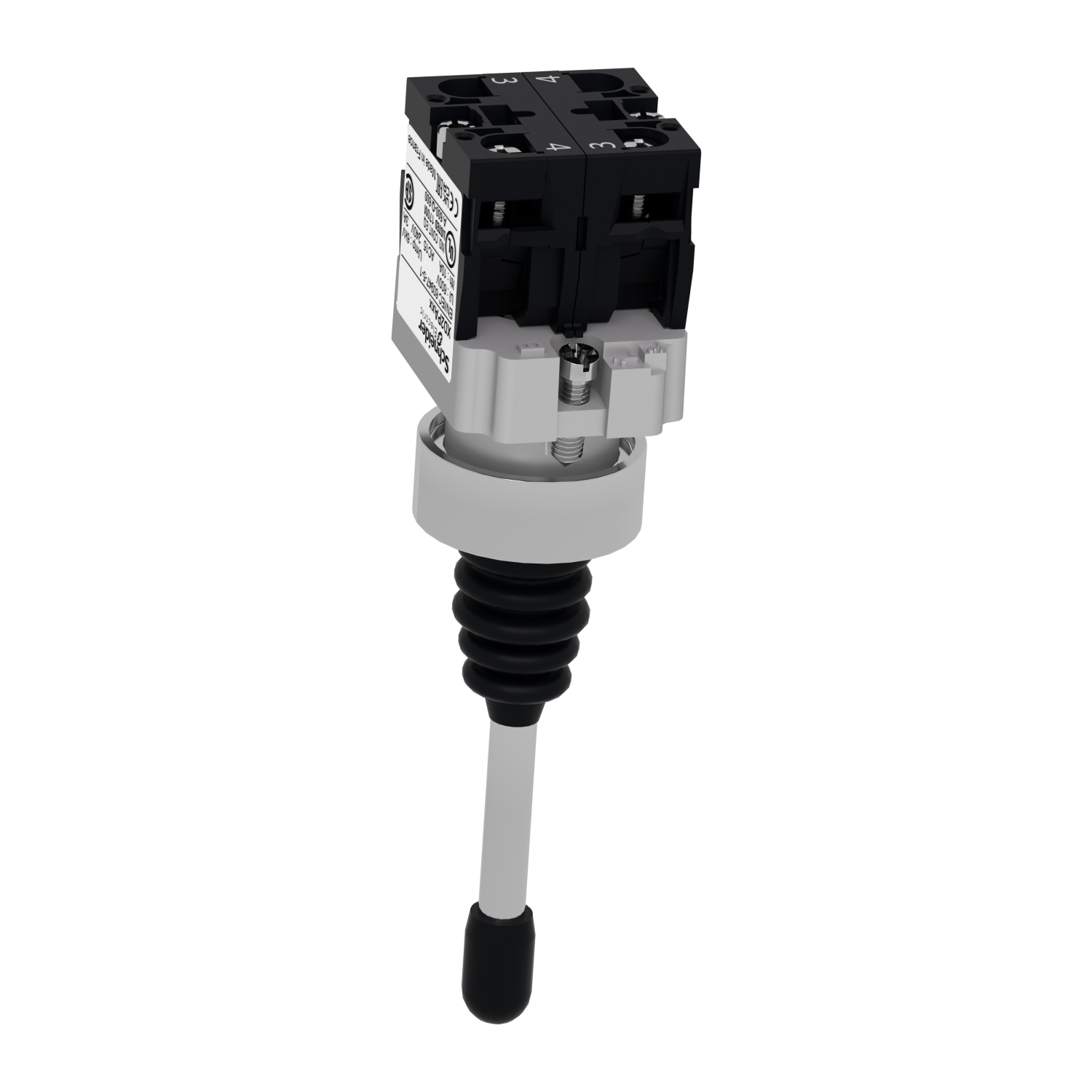

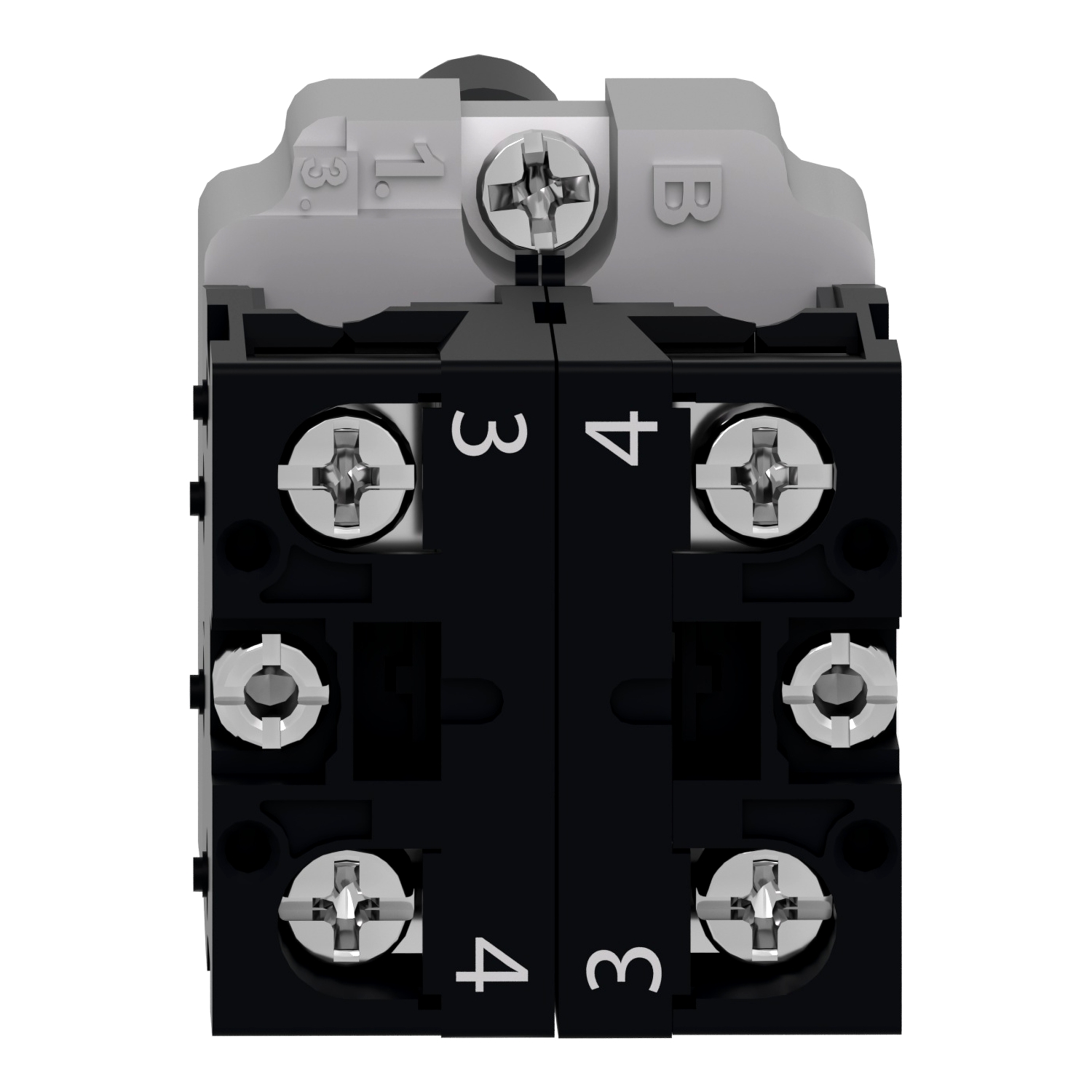

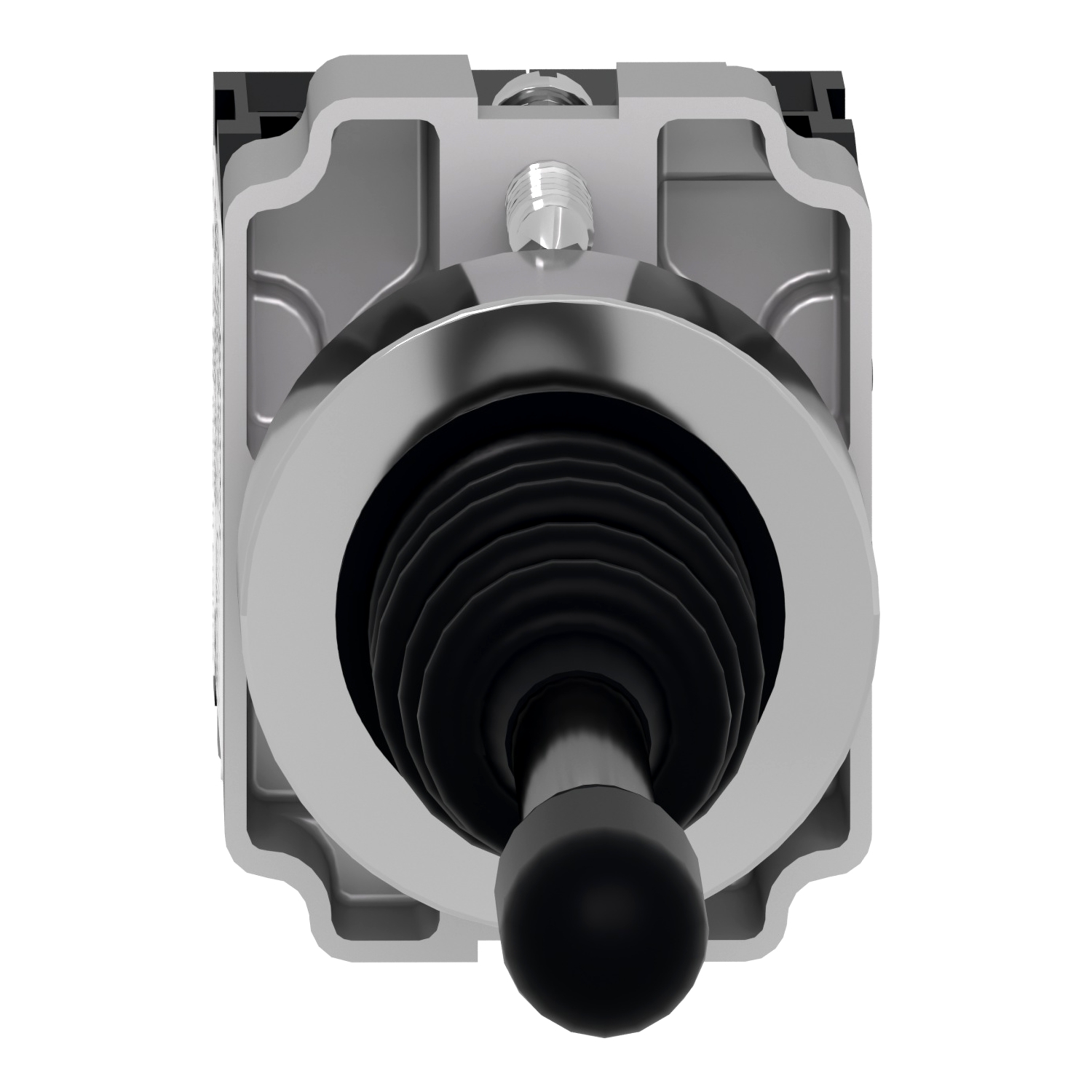

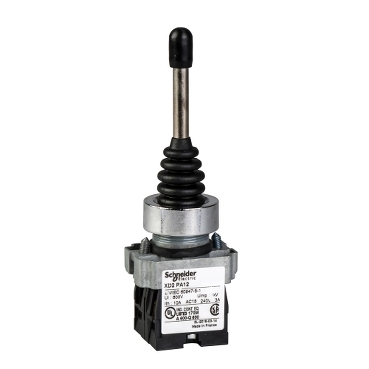

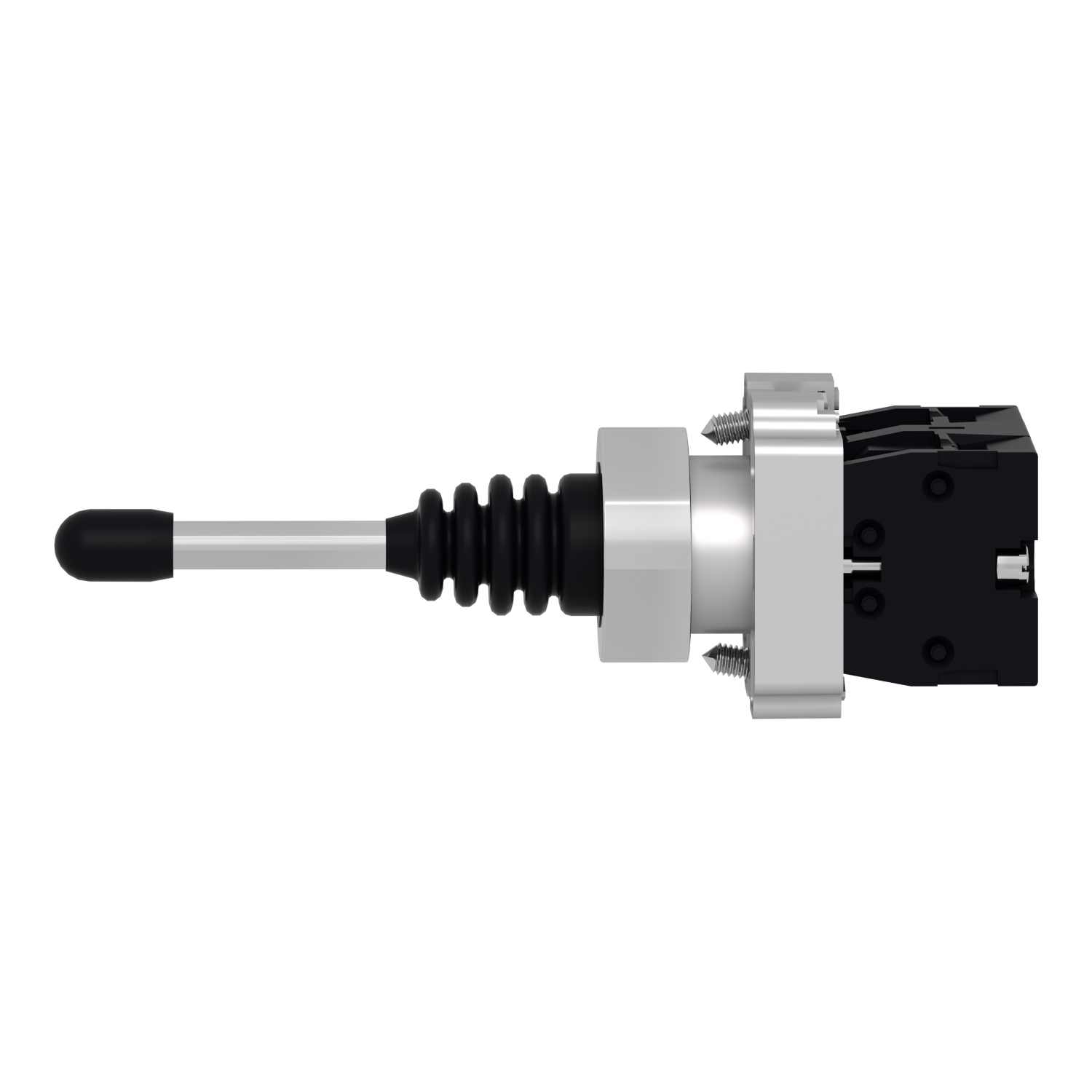

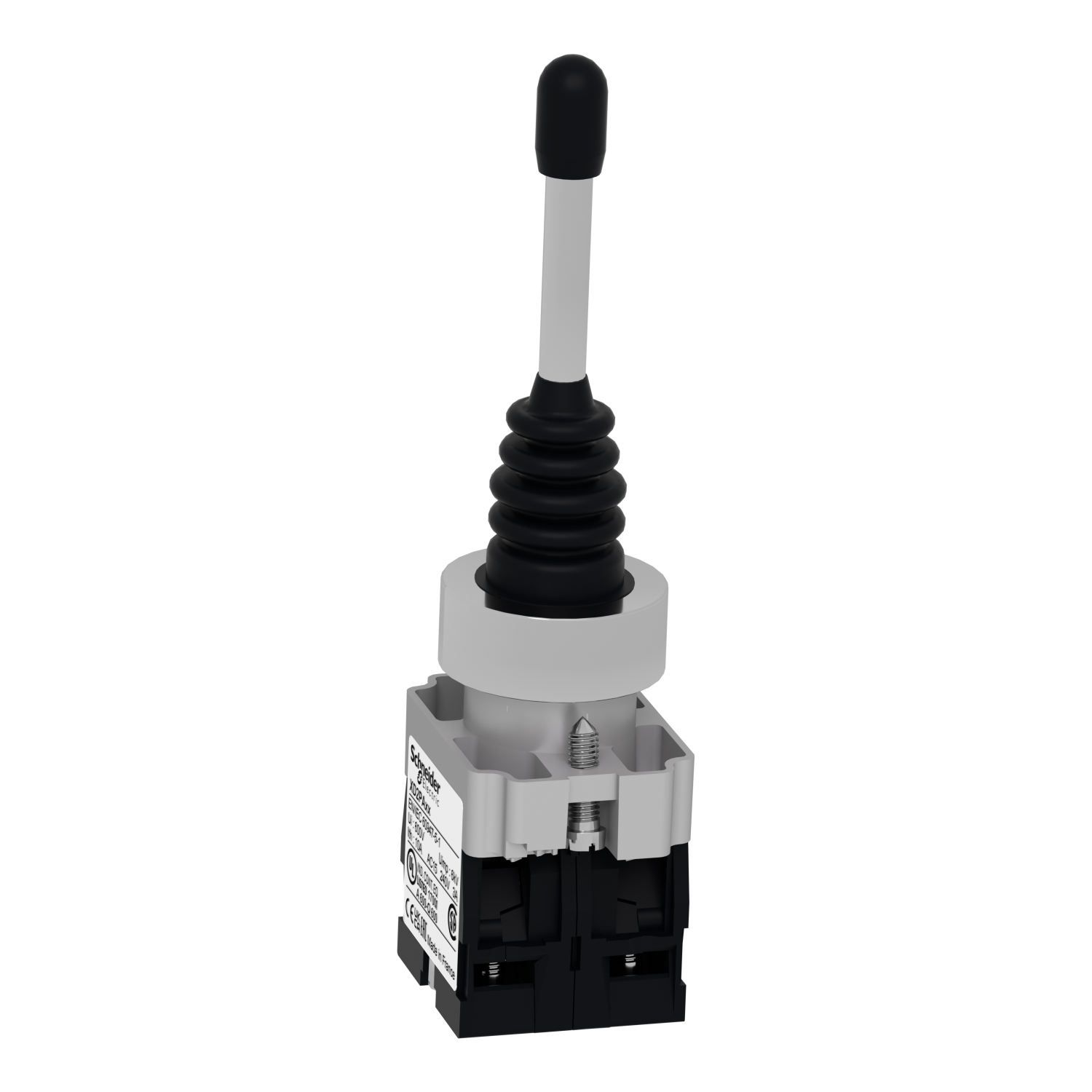

Controler Cu Maneta De Comanda Complet - Ø22 - 2 Directii - 1 No Per Directie
Documente
Specificatii
| Electrical | |
| Rated operation current Ie at AC-21, 400 V | 10 A |
| Model/type | |
| With retraction in 0-position | Yes |
| With front ring | Yes |
| Connection | |
| Number of normally open contacts per actuation direction | 1 |
| Number of make-and-break contacts per direction | 0 |
| Number of normally closed contacts per actuation direction | 0 |
| Colour | |
| Colour front ring | Chrome |
| Options | |
| Coder | No |
| Analogue output signal configurable | No |
| Locking in 0-position | No |
| Setting/control | |
| Number of switch positions | 2 |
| Number of actuation directions | 2 |
| Measurements | |
| Joy stick length | 79 mm |
| Centre mounting, hole diameter | 22 mm |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 181,76 cm3 |
| weight | 132 g |
| length | 14,2 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110611601 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,676 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 48 |
| qmin | 48 |
| um | CT |
| gtin | 43389110611609 |
