Descriere

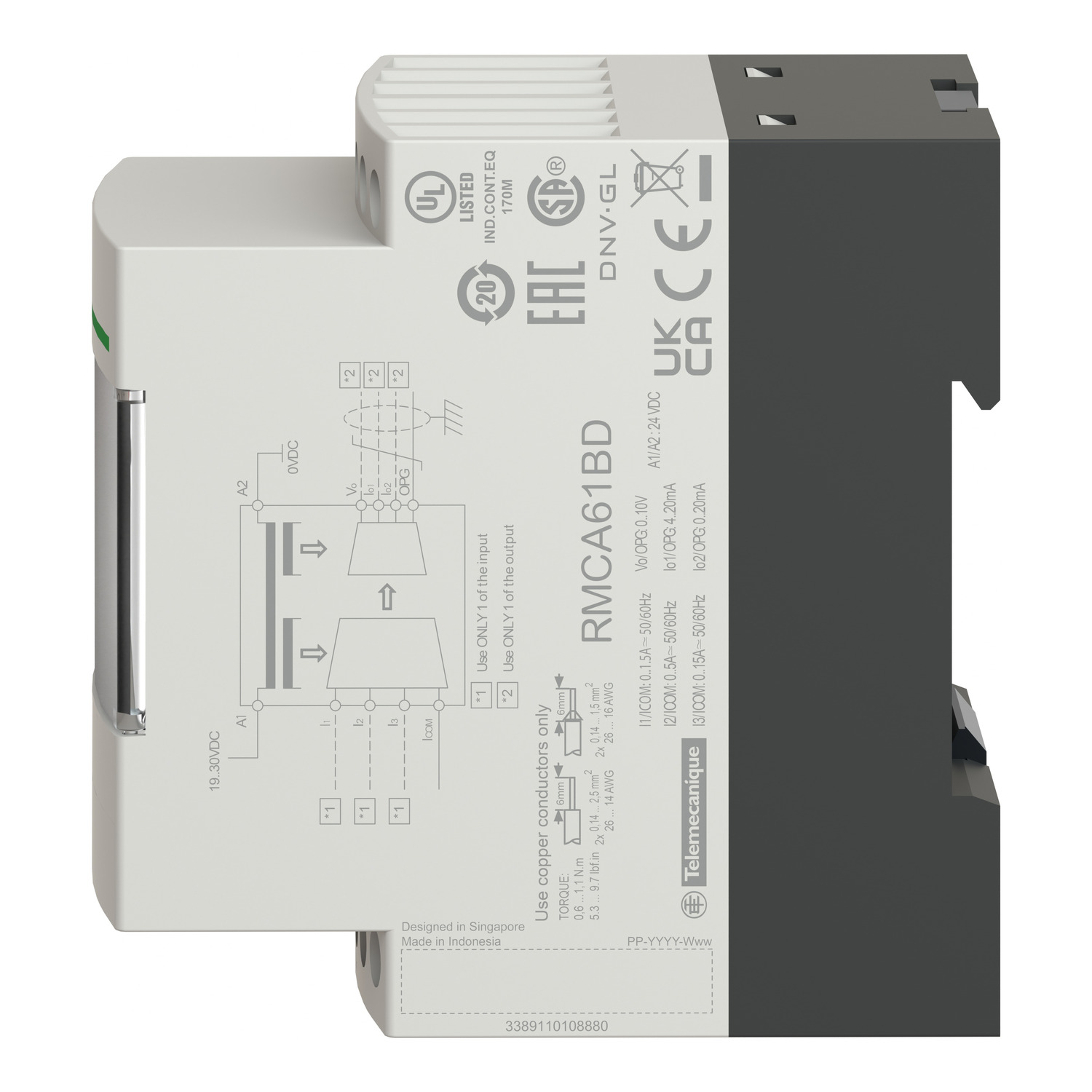

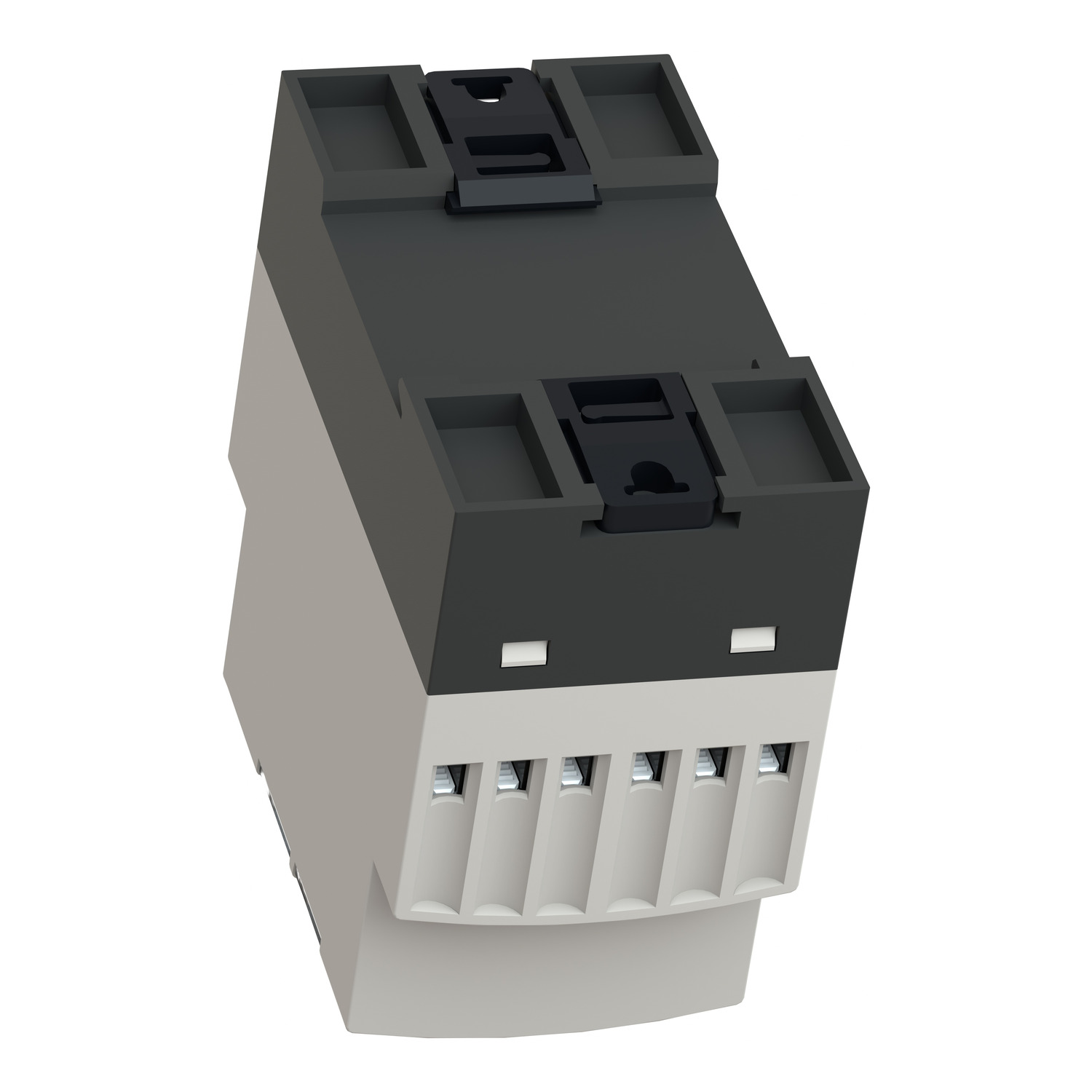

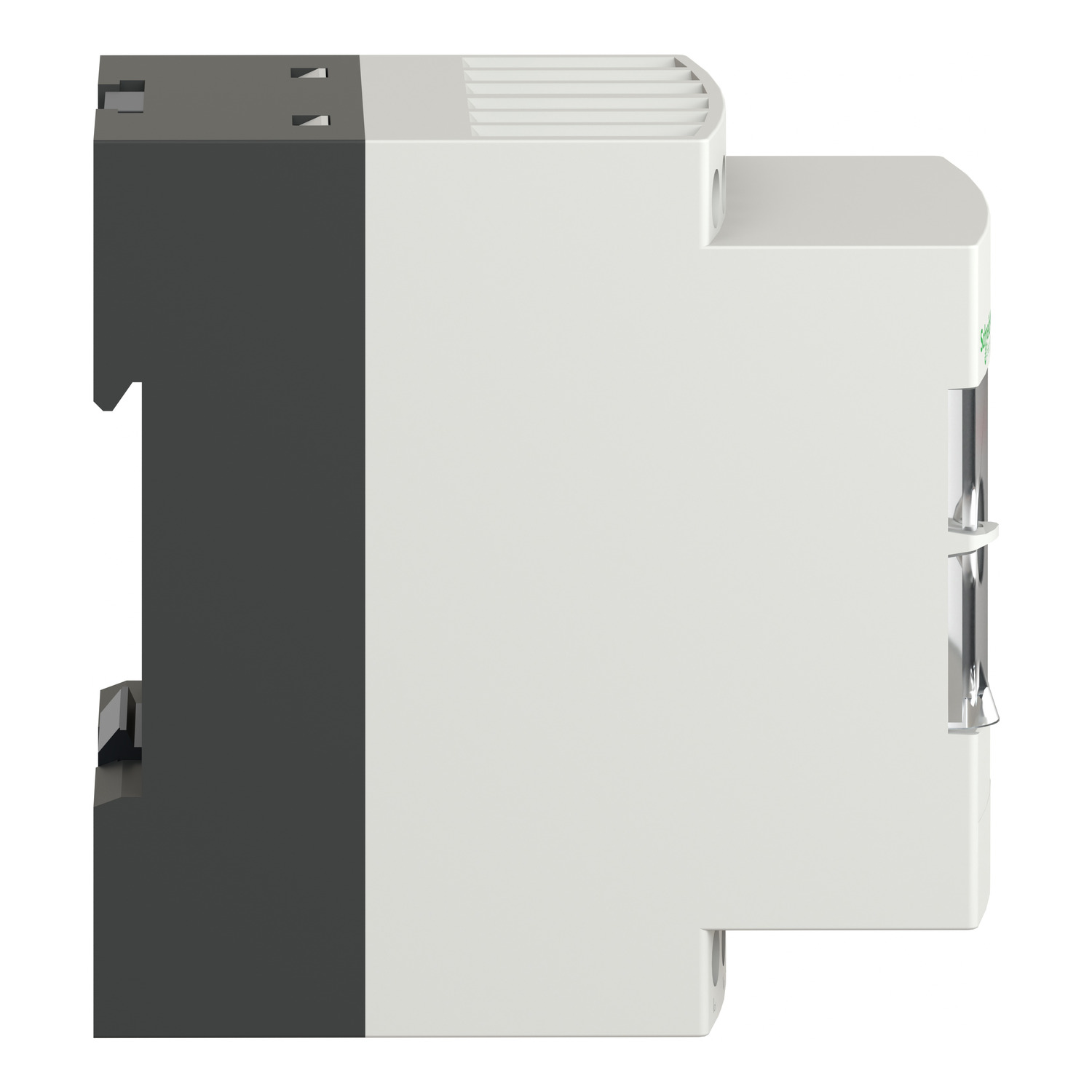

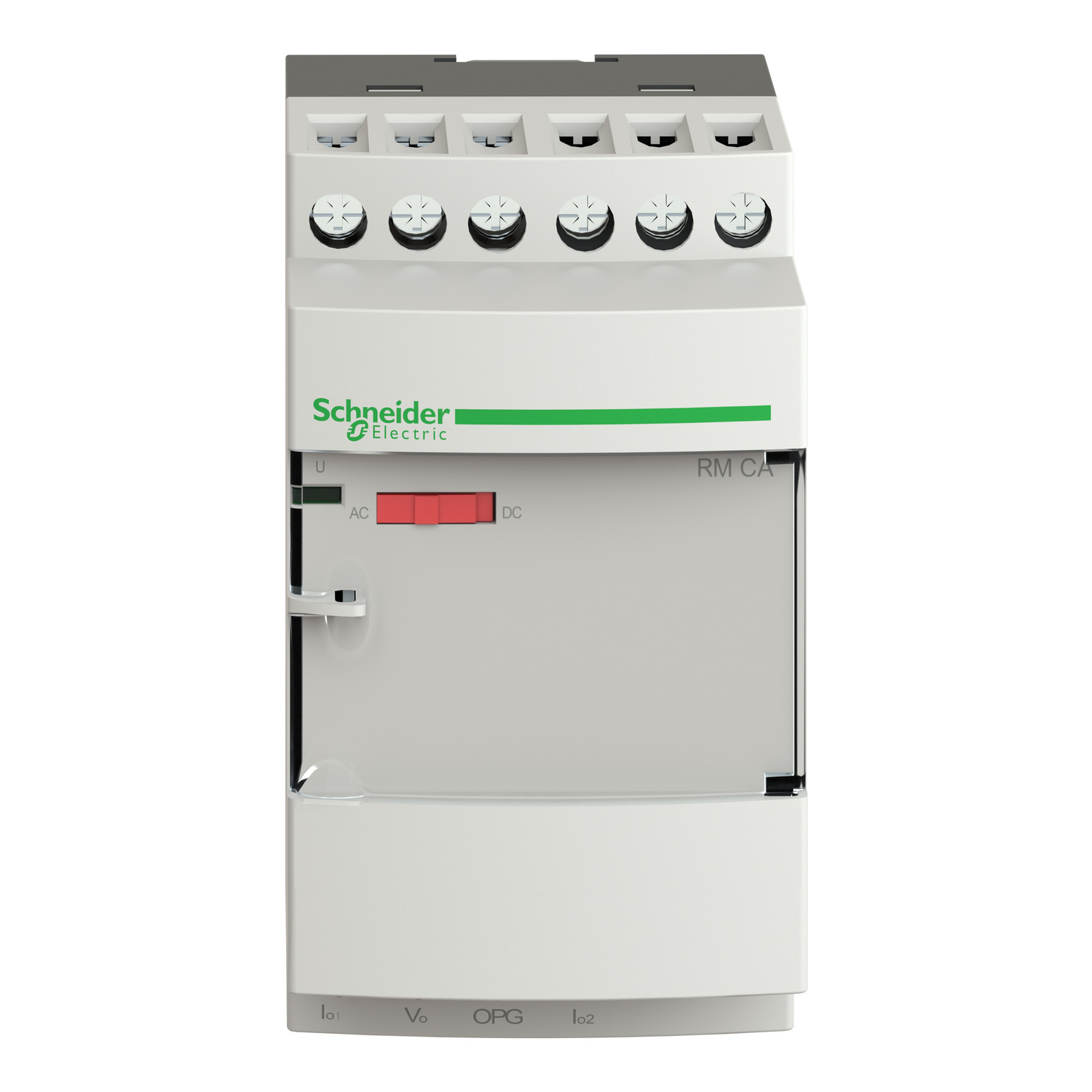

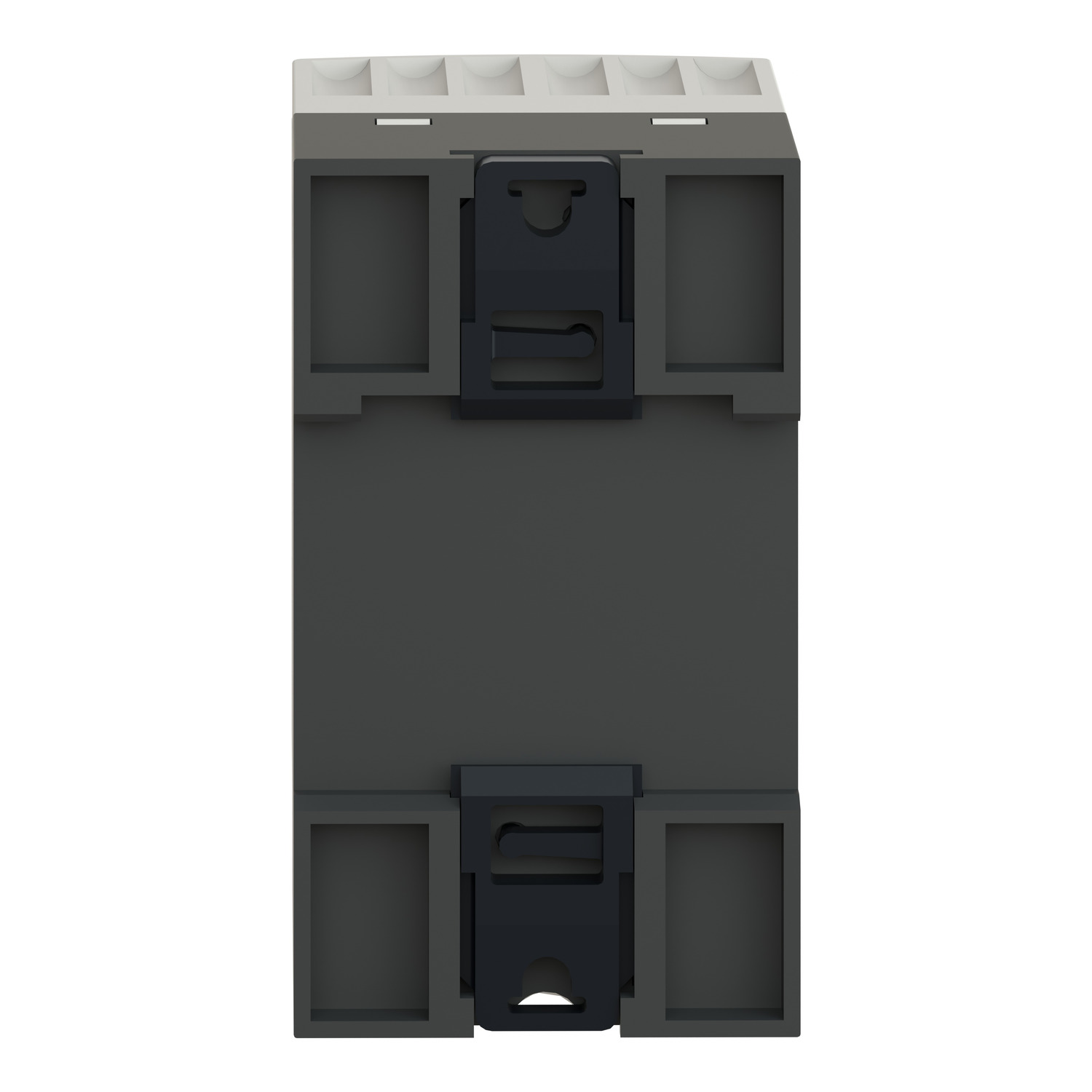

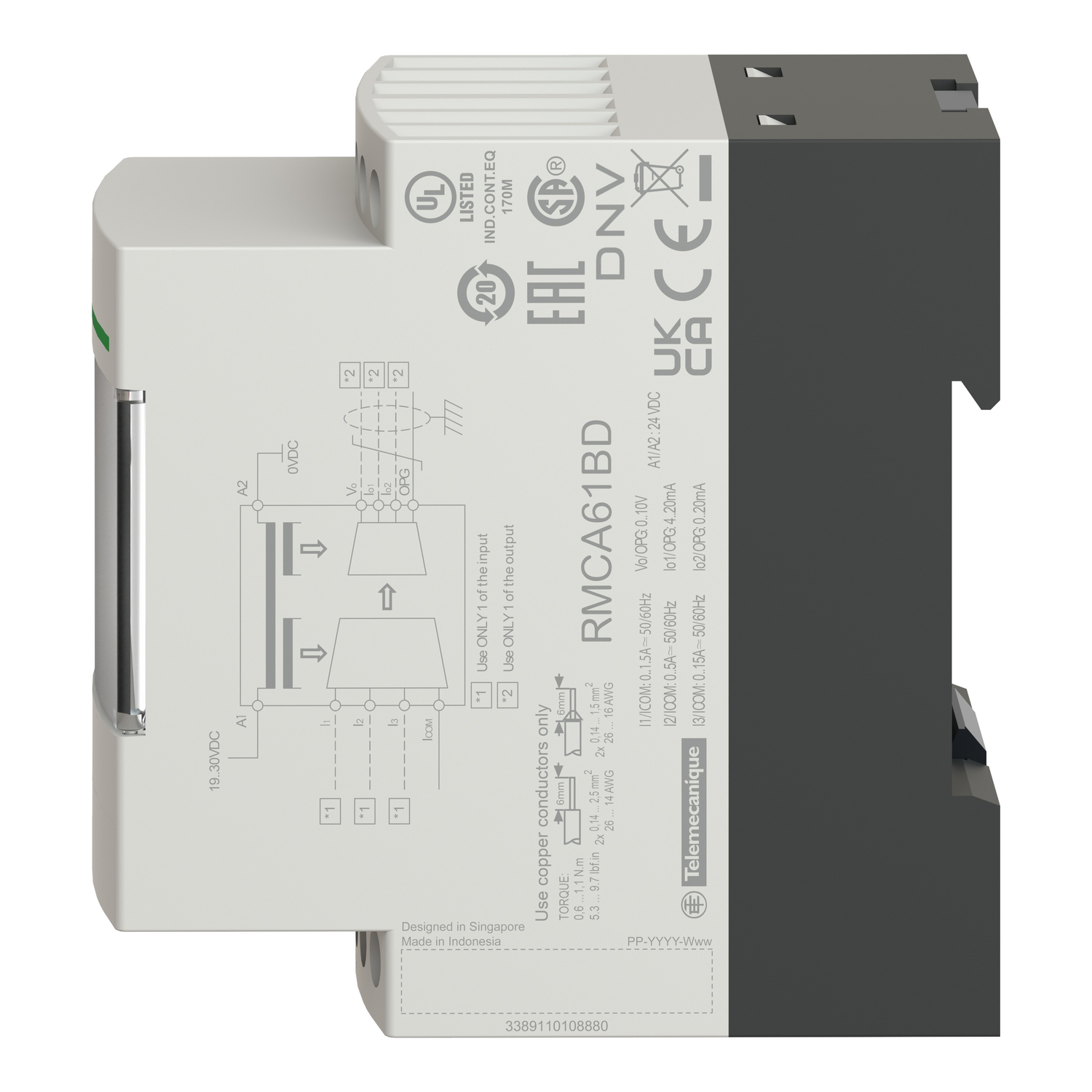

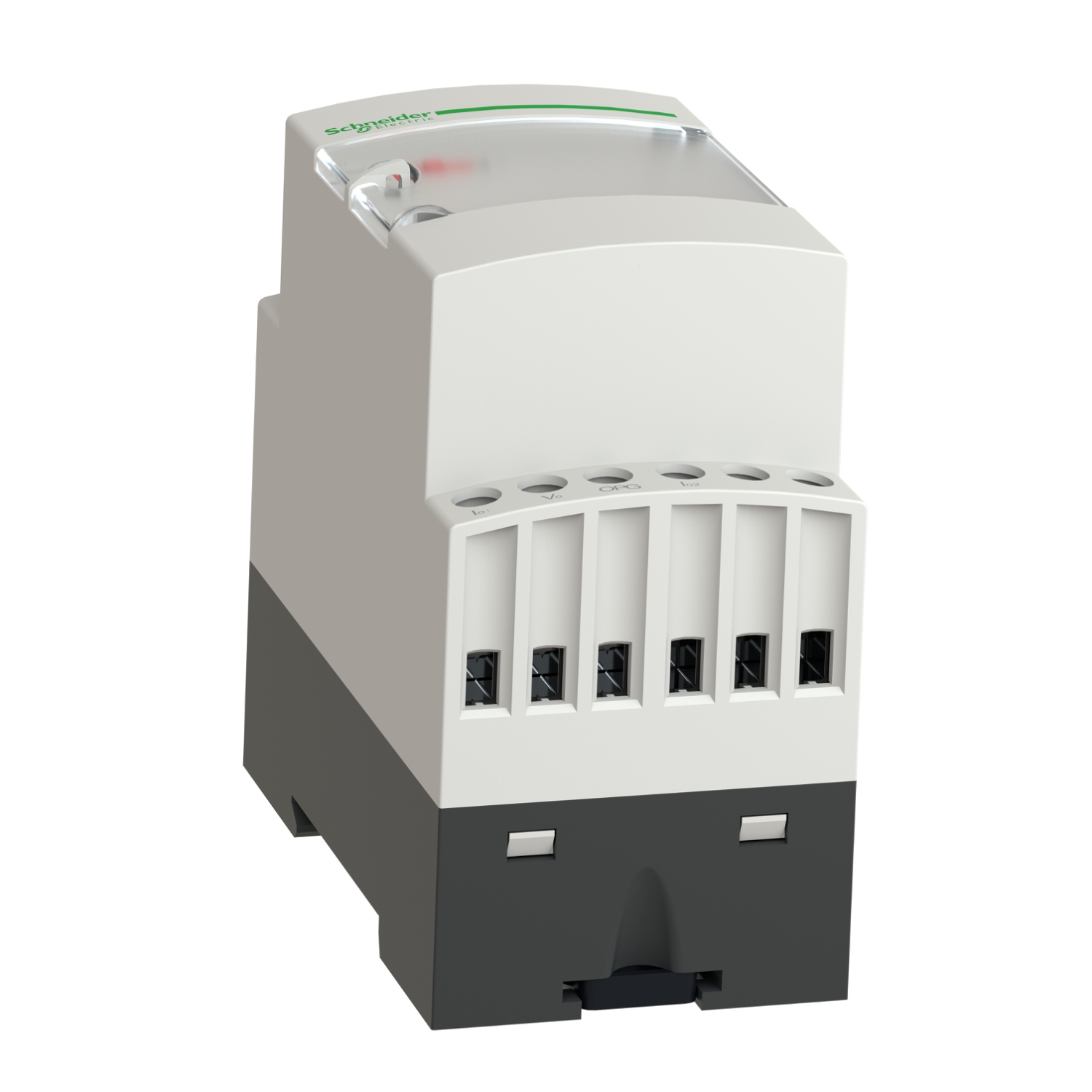

Convertor Analogic Izolat - 0 - 5 A - Pentru Zelio Analog
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Model | Through-feed current converter |
| With contact protection | Yes |
| With copper rail | Yes |
| Options | |
| Calibrated | Yes |
| Connection | |
| Number of primary inputs | 1 |
| Secondary connection | Screw connection |
| Electrical | |
| Rated primary current | 15 A |
| Overcurrent limiting factor | FS 10 |
| Rated secondary current | 0.02 A |
| Rated secondary apparent power | - |
| Measurements | |
| Opening diameter | - |
| Width opening | - |
| Height opening | - |
| Other | |
| Accuracy class | 1 |
| Mounting/installation | |
| Snap mounting | Yes |
| Package 1 | |
| volume | 315,84 cm3 |
| weight | 175 g |
| length | 8 cm |
| width | 4,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110108880 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,1 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 33 |
| qmin | 33 |
| um | CT |
| gtin | 23389110108884 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 106 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 528 |
| qmin | 528 |
| um | PF |
