Descriere

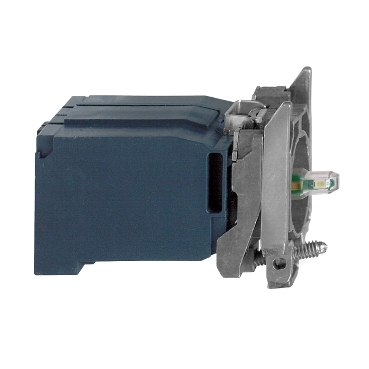

Bloc Luminos Rosu cu Inel pentru Corp/de Fixare, bec Led Ba9S 400 V
Documente
Specificatii
| Model/type | |
| With light source | Yes |
| With integrated diode | Yes |
| Lamp type | LED |
| Lamp holder | BA9s |
| Mounting/installation | |
| Type of fastening | Front fastening |
| Electrical | |
| With integrated voltage decreasing resistor | No |
| Rated voltage Ue at AC 50 Hz | 400 V |
| Rated voltage Ue at DC | - |
| Voltage type for actuating | AC/DC |
| Rated voltage Ue at AC 60 Hz | 400 V |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Colour | |
| Colour light source | Red |
| Options | |
| Transformer integrated | Yes |
| Package 1 | |
| volume | 139,776 cm3 |
| weight | 132 g |
| length | 8,4 cm |
| width | 5,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110892604 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,913 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 43389110892602 |
