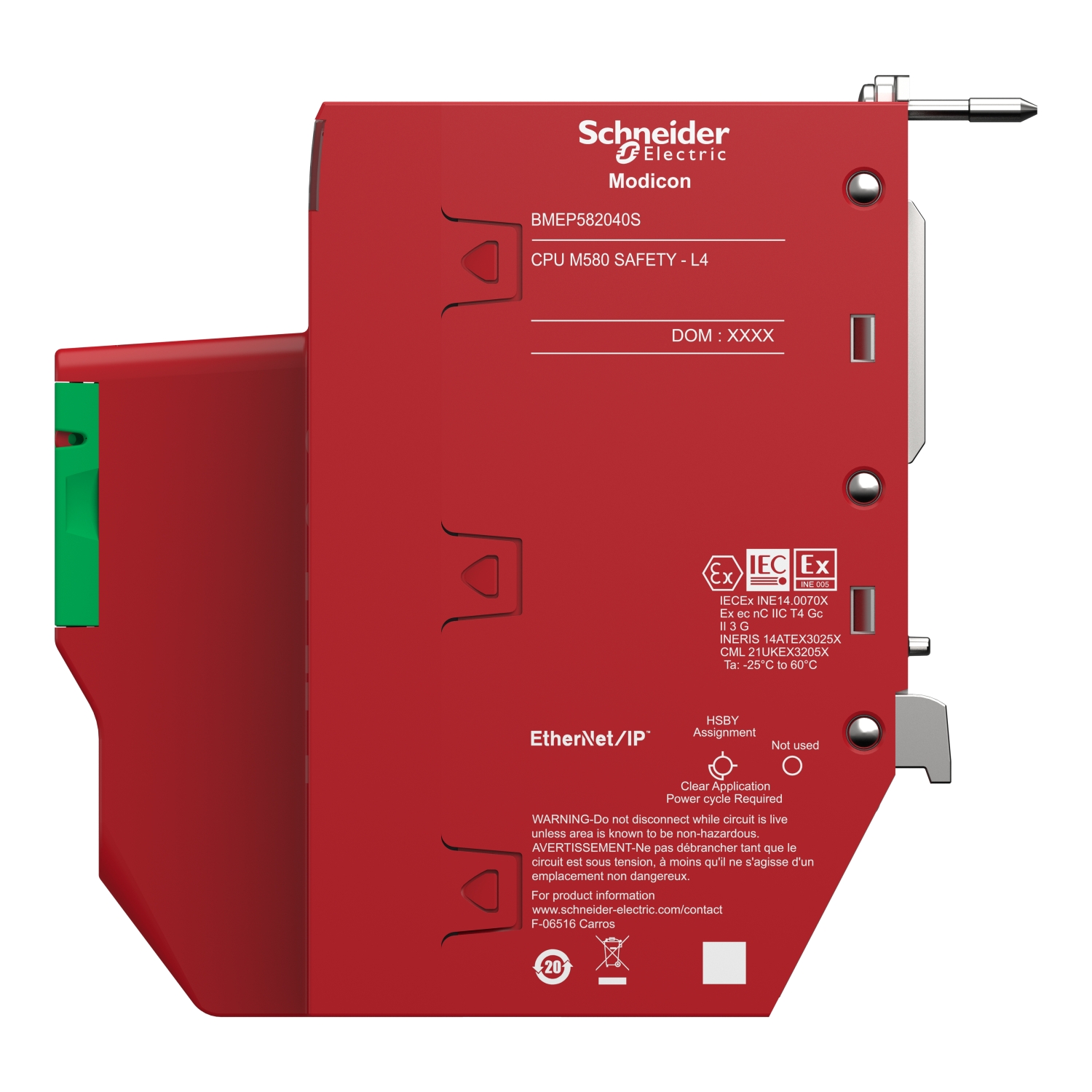

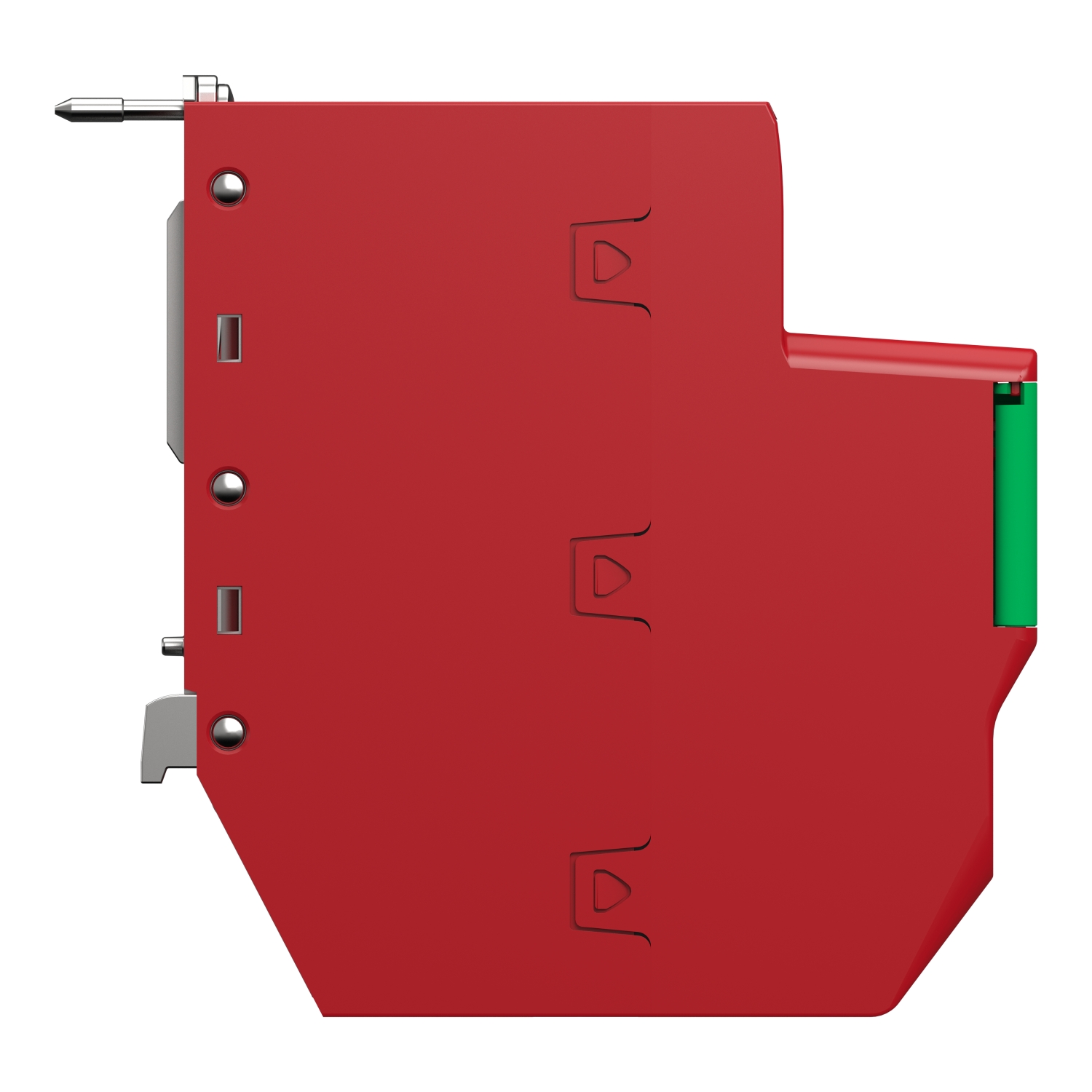

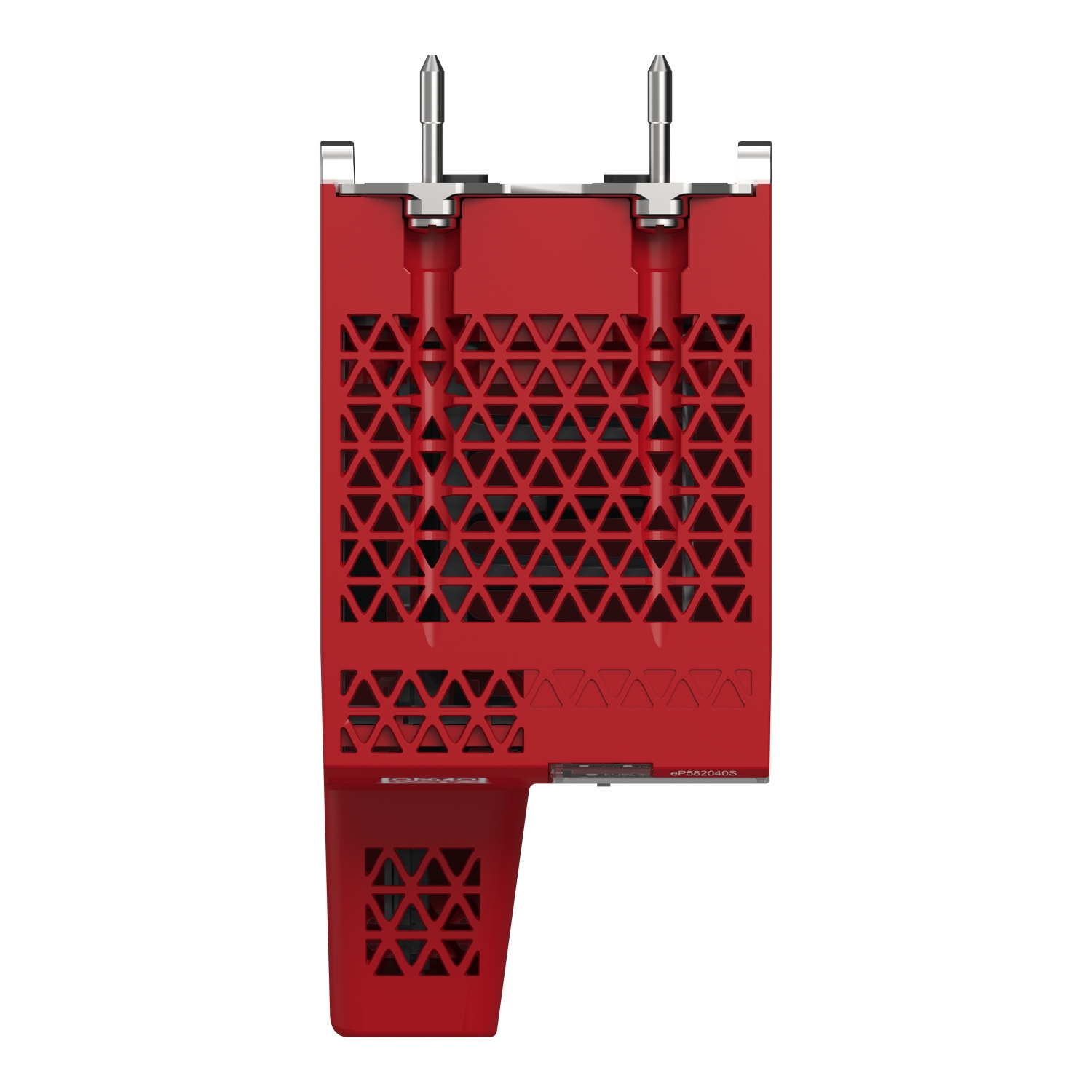

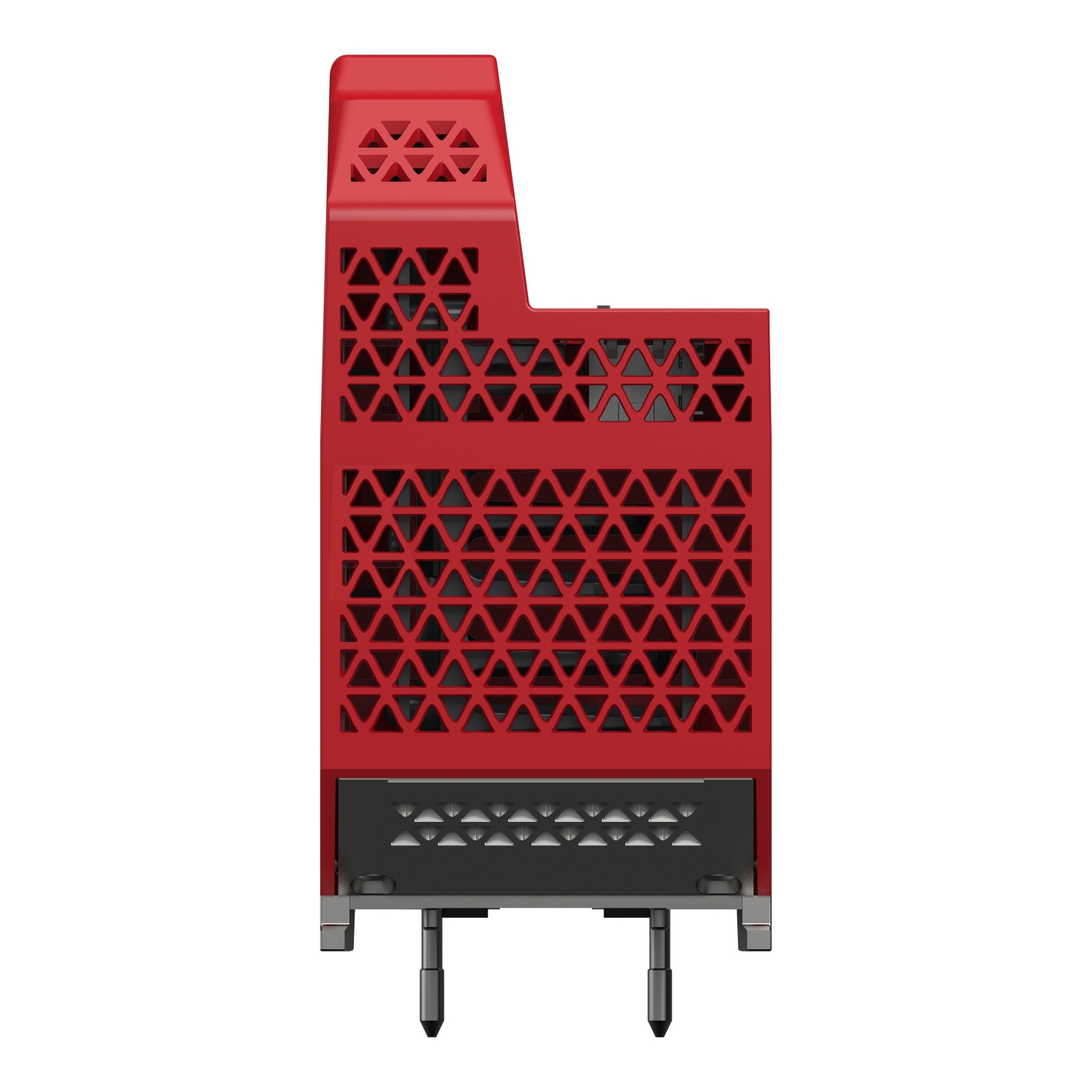

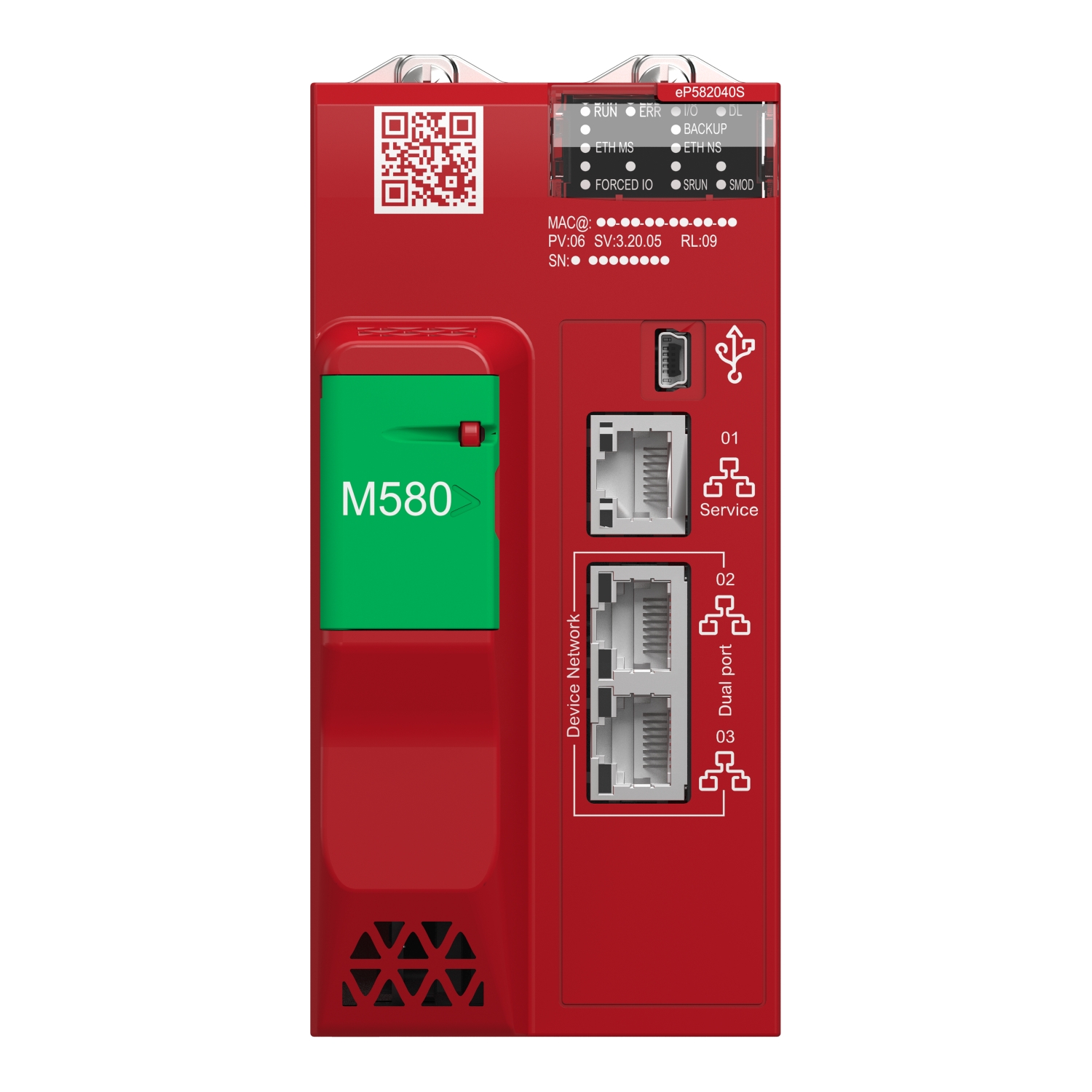

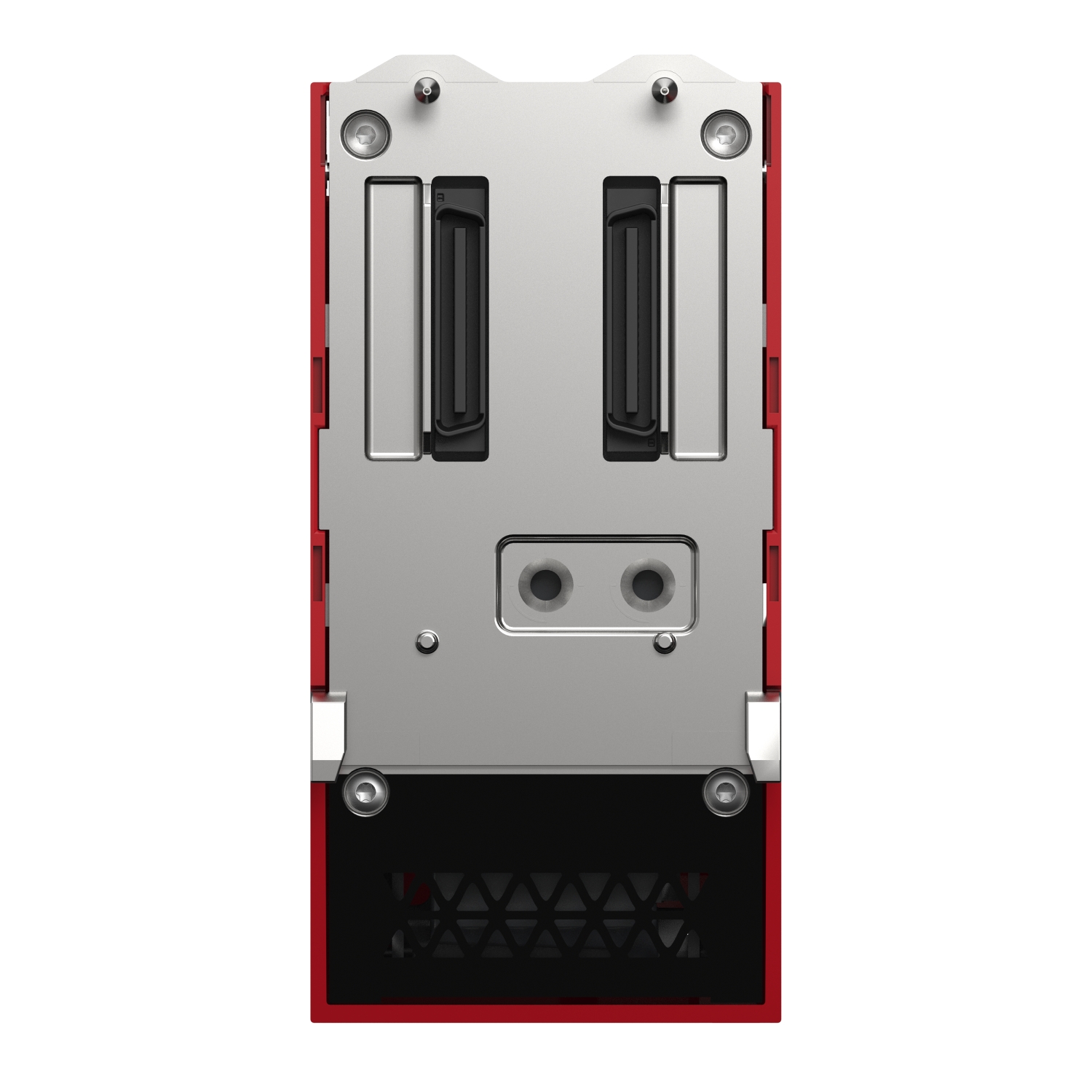

Modicon M580 - CPU Safety, 8/2 MB mémoire, 8 stations RIO X80
Documente
Specificatii
| Communication | |
| Supporting protocol for IEC 60870 | No |
| Supporting protocol for DNP3 | No |
| Number of HW-interfaces parallel | - |
| Number of interfaces PROFINET | - |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | - |
| Number of HW-interfaces USB | 1 |
| With optical interface | - |
| Number of HW-interfaces wireless | - |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | Yes |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | Yes |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for IEC 61850 Ethernet | Yes |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces industrial Ethernet | 3 |
| Number of HW-interfaces RS-232 | - |
| Approval/certification | |
| SIL according to IEC 61508 | 3 |
| Connection | |
| Number of relay outputs | - |
| Number of digital outputs | - |
| Number of digital inputs | - |
| Number of analogue outputs | - |
| Number of analogue inputs | - |
| Other | |
| Max. number of time switches | - |
| Processing time (1K, binary operation) | - |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | - |
| Options | |
| System accessory | Yes |
| Additional program memory possible | Yes |
| Radio standard GPRS | No |
| Redundancy | Yes |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Long-Term Evolution (LTE) | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Rack-assembly possible | Yes |
| Performance | |
| Performance level according to EN ISO 13849-1 | Level e |
| Measurements | |
| Height | 89 mm |
| Width | 180 mm |
| Depth | 250 mm |
| Memory size | 10 kByte |
| Protection | |
| Explosion safety category for dust | Other |
| Explosion safety category for gas | Other |
| Model/type | |
| With display | No |
| Model | Modular |
| Type of memory | RAM |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 24 V |
| Mounting/installation | |
| Front built-in possible | No |
| Suitable for rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
| Application | |
| Suitable for safety functions | Yes |
| Package 1 | |
| volume | 4005 cm3 |
| weight | 876 g |
| length | 25 cm |
| width | 18 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489705480 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,737 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 13606489705487 |
