Descriere

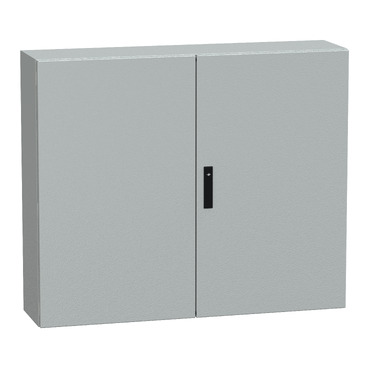

PanelSeT CRNG 2 usi pline, fara contrapanou H1000xW1200xD300 IP55 IK10 RAL7035
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Colour | |
| Colour | Grey |
| RAL-number | 7035 |
| Mounting/installation | |
| With mounting plate | No |
| Suitable for metrical mounting | No |
| Suitable for wall built-in | No |
| Mounting plate depth-adjustable | No |
| Pole fastening | Yes |
| Measurements | |
| Width | 1200 mm |
| Depth | 300 mm |
| Height | 1000 mm |
| Model/type | |
| With glazed door | No |
| Number of doors | 2 |
| Number of locks | 1 |
| With ventilation door | No |
| EMC-version | No |
| Pitched roof | No |
| With rear door | No |
| Material | |
| Surface finishing | Powder coating |
| Material | Steel |
| Material quality | Other |
| Application | |
| Suitable for outdoor set-up | No |
| Other | |
| Impact strength | IK10 |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | 12 |
| Package 1 | |
| volume | 420665 cm3 |
| weight | 61,5 kg |
| length | 122,5 cm |
| width | 101 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480298196 |
| Package 2 | |
| volume | 1123200 cm3 |
| weight | 134 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 2 |
| qmin | 2 |
| um | PF |
