Descriere

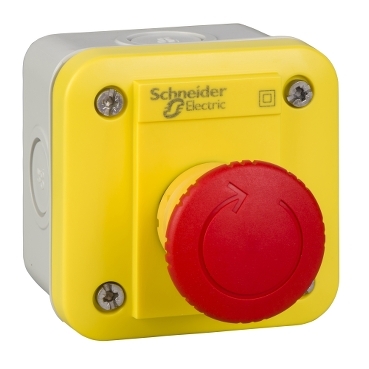

Statie control XAL-E - Functie Buton urg . - elib. prin rotire - 2 NC
Documente
Specificatii
| Model/type | |
| Number of indicator lights | 0 |
| Number of selector switches | 0 |
| Number of push buttons | 1 |
| Number of mushroom-shaped push-buttons | 0 |
| Number of key switches | 0 |
| Number of command positions | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated control supply voltage DC | - |
| Material | |
| Housing material | Plastic |
| Application | |
| Suitable for emergency stop | Yes |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Colour | |
| Colour housing cover | Yellow |
| Protection | |
| Degree of protection (IP) | IP54 |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 825,132 cm3 |
| weight | 137,5 g |
| length | 11,4 cm |
| width | 7,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480542862 |
| Package 2 | |
| volume | 1326000 cm3 |
| weight | 75 kg |
| length | 100 cm |
| width | 120 cm |
| qmax | 400 |
| qmin | 400 |
| um | PF |
