Descriere

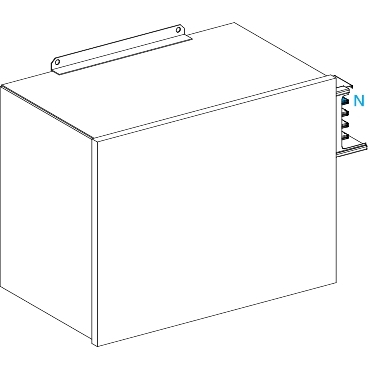

Canalis - Unit. Alimentare Pt. Ksa - 1000 A - Montaj Stanga
Documente
Specificatii
| Colour | |
| Colour | White |
| RAL-number | 9001 |
| Measurements | |
| Length | 1229 mm |
| Width | 470 mm |
| Height | 500 mm |
| Power supply position | End |
| Electrical | |
| Rated current AC 50 Hz | 1000 A |
| Number of poles | 4 |
| Rated voltage AC 50 Hz | 690 V |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | - |
| Model/type | |
| Model | Single |
| Package 1 | |
| volume | 165847,5 cm3 |
| weight | 29,6 kg |
| length | 78 cm |
| width | 52,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480003479 |
