Descriere

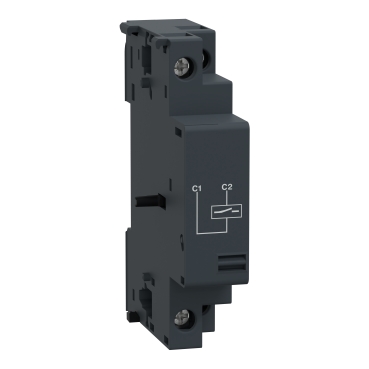

Releu Declansare La Tensiune - Tesys Gv-As - 220 - 240 V C.A. 50 Hz
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| End value adjustment range undelayed short-circuit release | - |
| Application | |
| Suitable for motor safety switch | No |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | No |
| Suitable for overload relay | No |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | - |
| Package 1 | |
| volume | 285,603 cm3 |
| weight | 115 g |
| length | 9,3 cm |
| width | 8,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110343724 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 2,042 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 16 |
| qmin | 16 |
| um | CT |
| gtin | 43389110343722 |
