Descriere

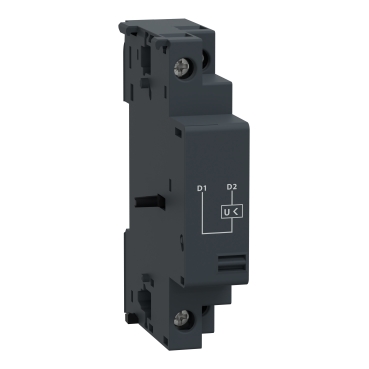

Releu Declansare La Tensiune - Tesys Gv-Au - 380 - 400 V C.A. 50 Hz
Documente
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 380 V |
| Rated control supply voltage AC 60 Hz | 440 V |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Application | |
| Suitable for motor safety switch | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | No |
| Suitable for overload relay | No |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Delayed | No |
| Package 1 | |
| volume | 292,485 cm3 |
| weight | 107 g |
| length | 9,3 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110346022 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,83 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 42 |
| qmin | 42 |
| um | CT |
| gtin | 23389110346026 |
