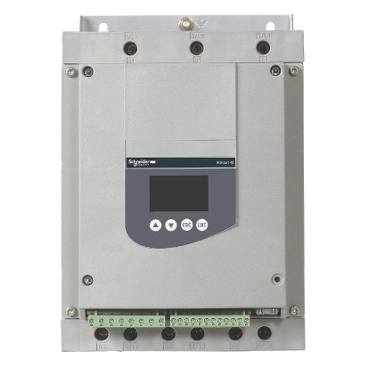

Demaror Progresiv Pt. Motor Asincron - Ats48 - 100 A - 230 - 415 V - 22 - 90 Kw
Documente
Specificatii
| Model/type | |
| With display | No |
| Function | Single direction |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated operating voltage Ue | 230 V |
| Rated control supply voltage AC 60 Hz | 220 V |
| Rated operation current Ie at 40 °C Tu | 110 A |
| Rated power three-phase motor, inline, at 230 V | 30 kW |
| Voltage type for actuating | AC/DC |
| Rated power three-phase motor, inline, at 400 V | 55 kW |
| Rated control supply voltage DC | - |
| Rated power three-phase motor, inside delta, at 230 V | 55 kW |
| Rated power three-phase motor, inside delta, at 400 V | 90 kW |
| Other | |
| Release class | Other |
| Options | |
| Internal bypass | No |
| Setting/control | |
| Torque control | Yes |
| Protection | |
| Integrated motor overload protection | Yes |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated surrounding temperature without derating | 40 °C |
| Package 1 | |
| volume | 42227,25 cm3 |
| weight | 9,27 kg |
| length | 39 cm |
| width | 30,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110982336 |
| Package 2 | |
| volume | 352800 cm3 |
| weight | 31,774 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 2 |
| qmin | 2 |
| um | PF |
