Descriere

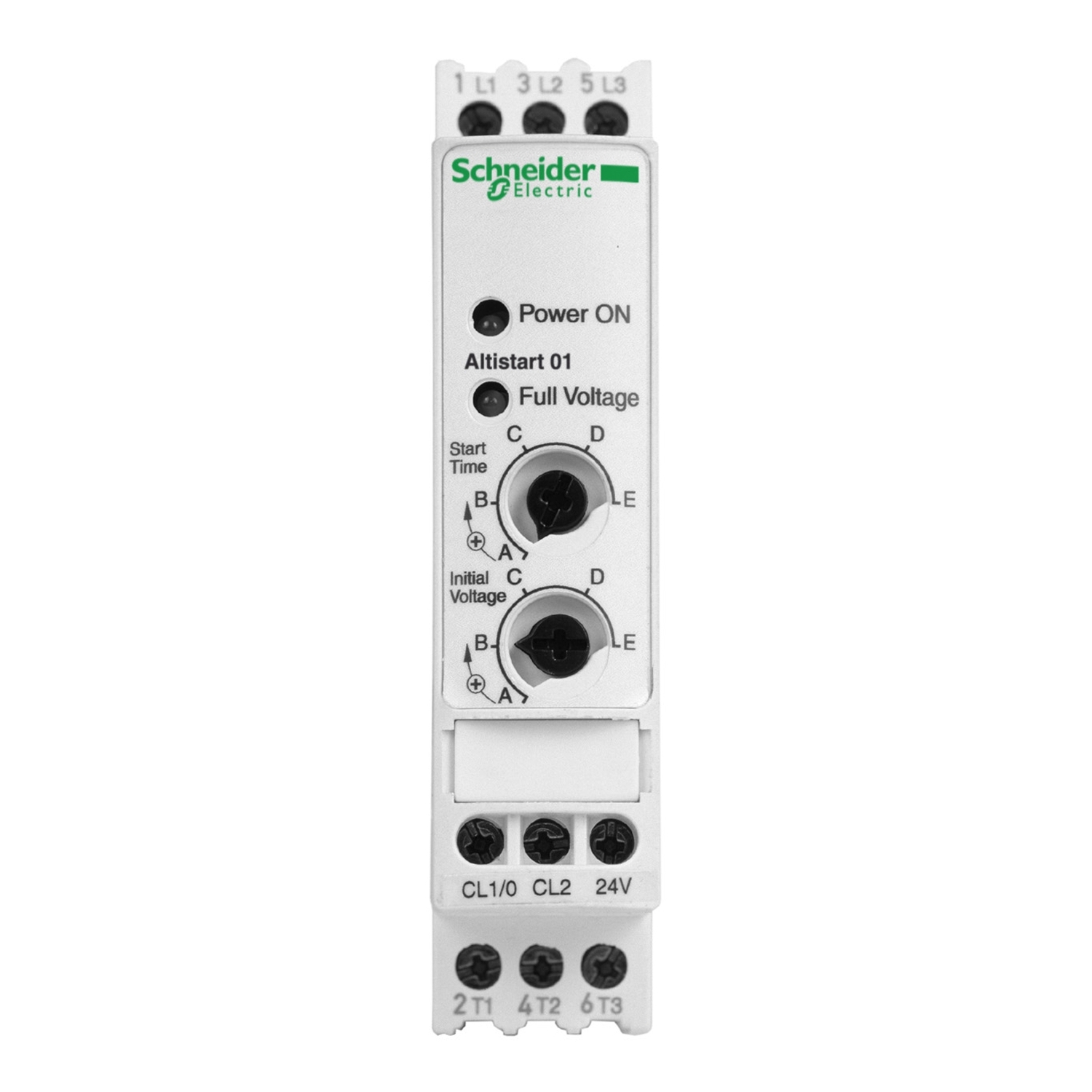

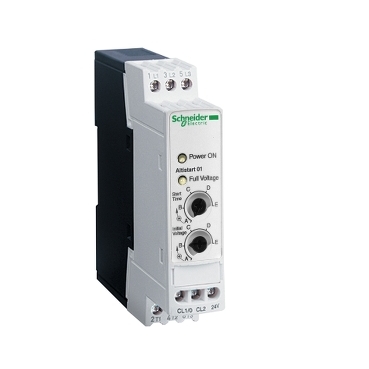

demaror Progresiv pentru Motor Asincron, Ats01, 3 A, 110, 480 V, 0.55, 1.1 Kw
Documente
Specificatii
| Model/type | |
| With display | No |
| Function | Single direction |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operating voltage Ue | 110 V |
| Rated operation current Ie at 40 °C Tu | 3 A |
| Rated power three-phase motor, inline, at 230 V | 0.55 kW |
| Voltage type for actuating | AC/DC |
| Rated power three-phase motor, inline, at 400 V | 1.1 kW |
| Rated control supply voltage DC | 24 V |
| Rated power three-phase motor, inside delta, at 230 V | - |
| Rated power three-phase motor, inside delta, at 400 V | - |
| Other | |
| Release class | Other |
| Options | |
| Internal bypass | Yes |
| Setting/control | |
| Torque control | No |
| Protection | |
| Integrated motor overload protection | No |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated surrounding temperature without derating | 40 °C |
| Package 1 | |
| volume | 270,375 cm3 |
| weight | 172 g |
| length | 10,5 cm |
| width | 10,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110667134 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,491 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 23389110667138 |
