Descriere

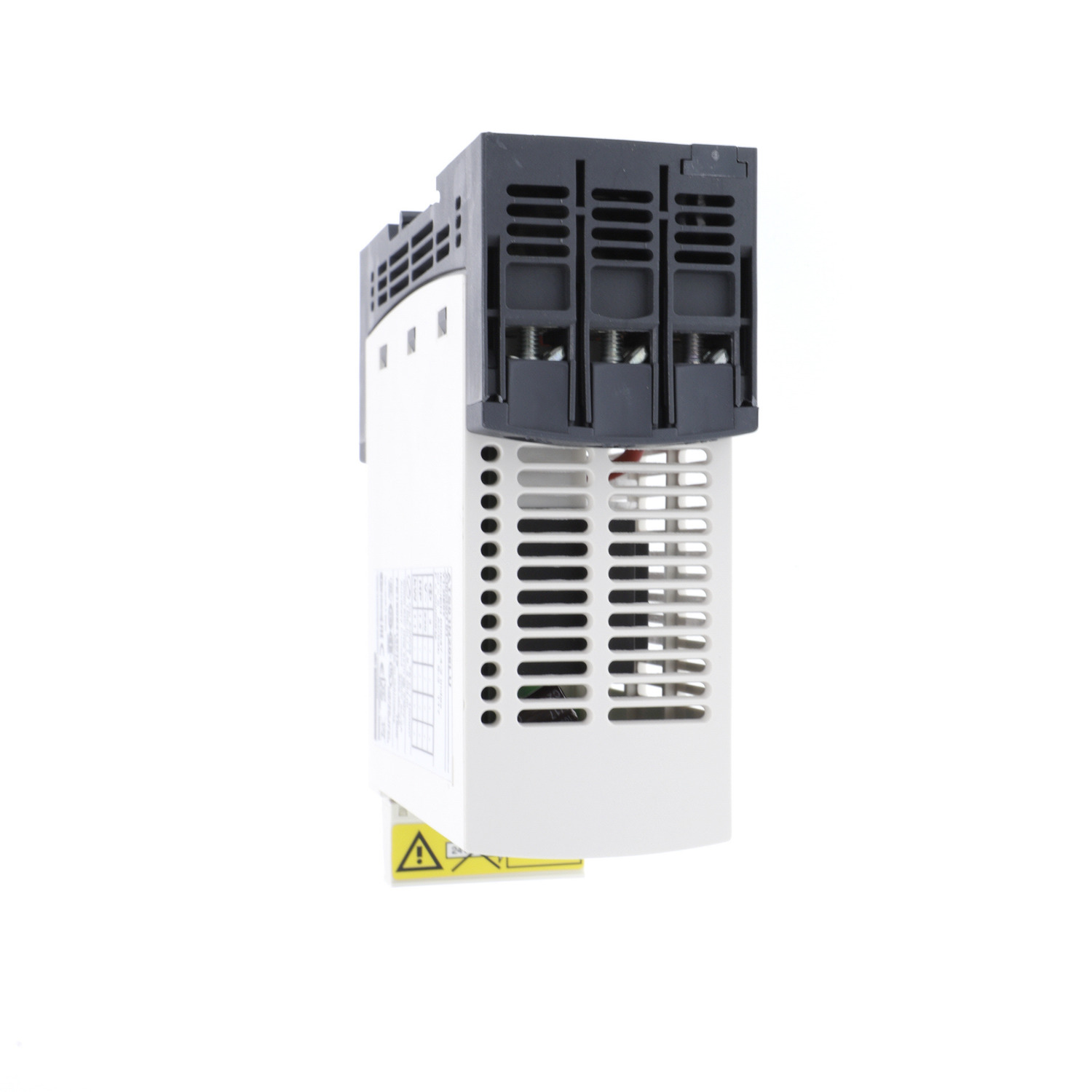

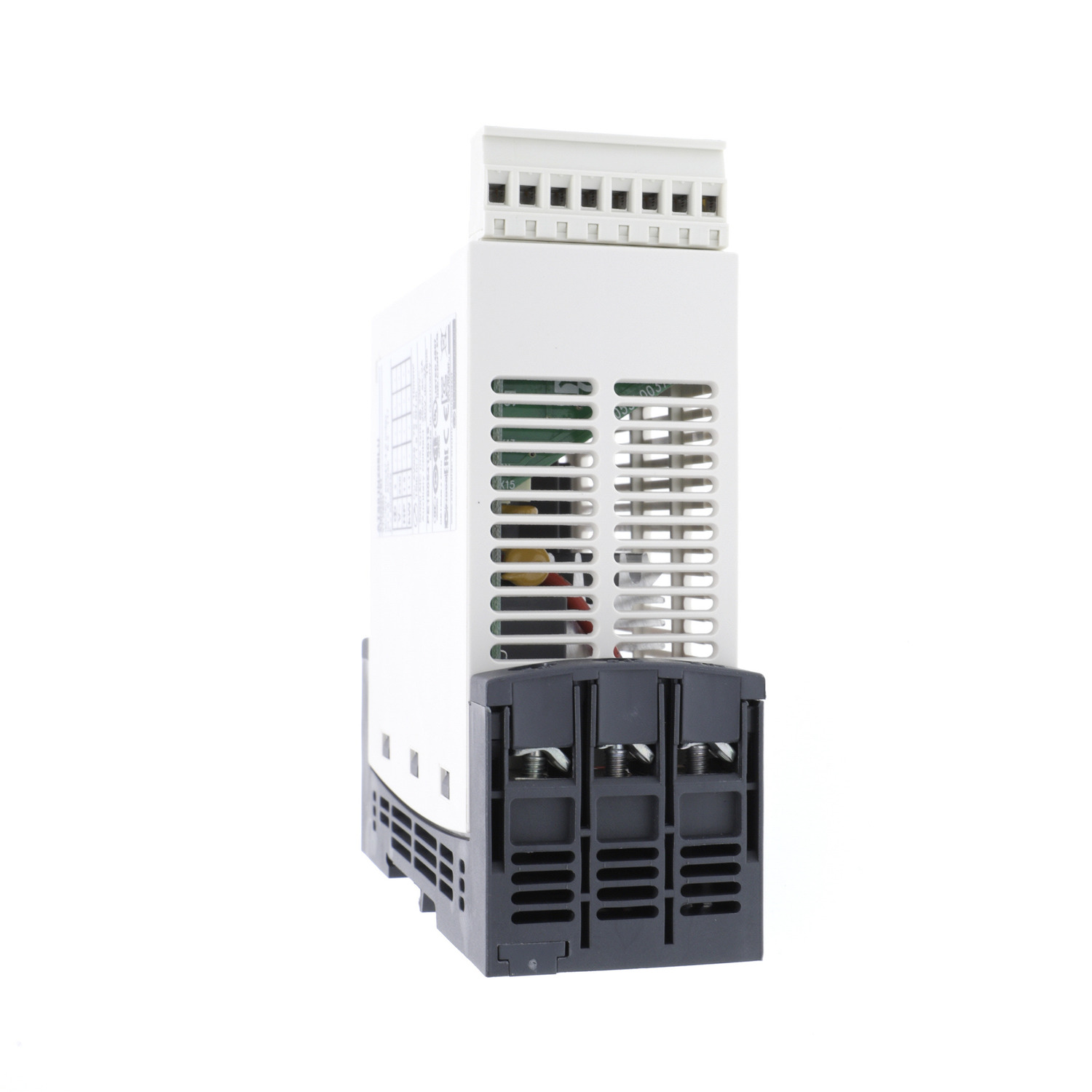

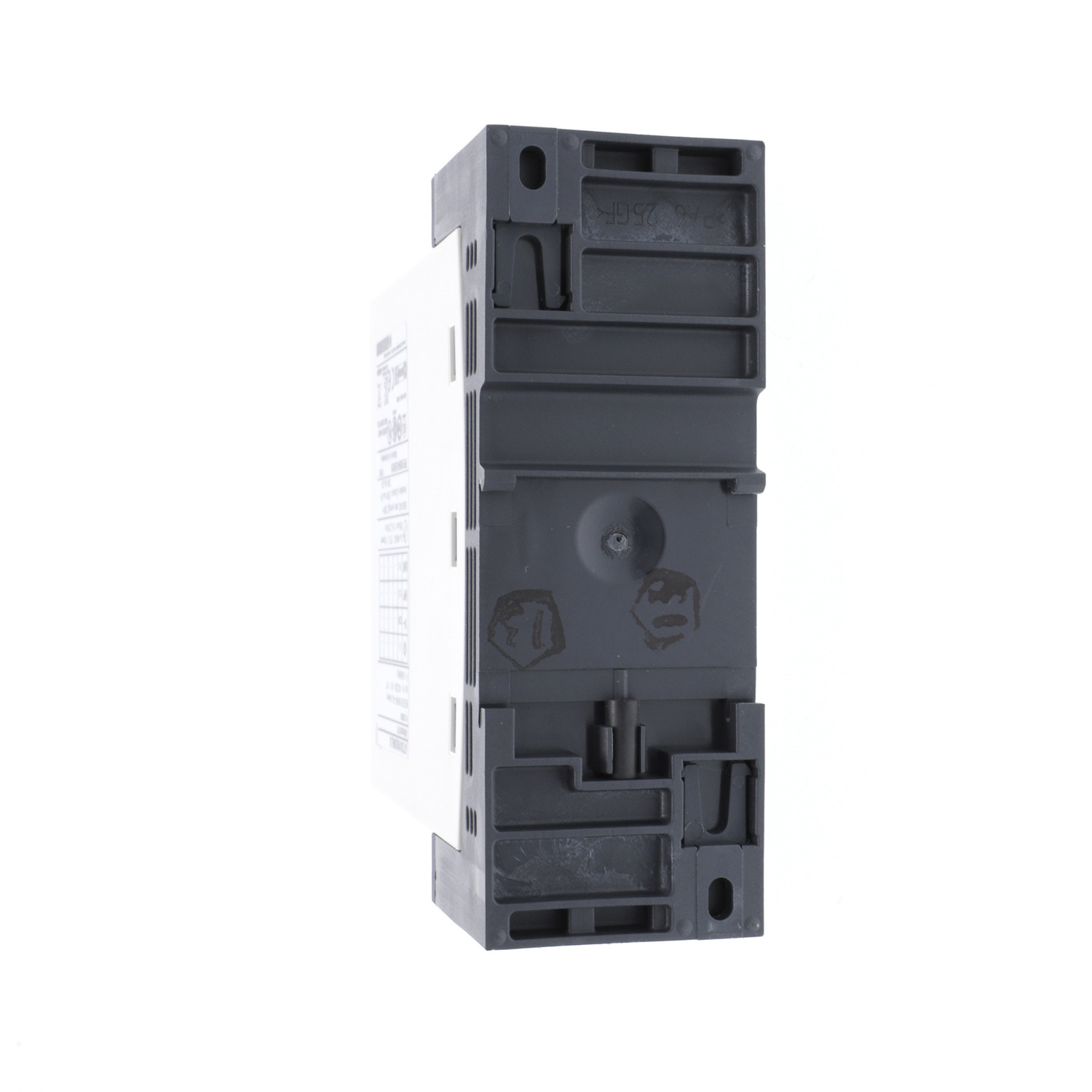

demaror Progresiv pentru Motor Asincron, Ats01, 6 A, 380, 415 V, 1.5, 3 Kw
Documente
Specificatii
| Model/type | |
| With display | Yes |
| Function | Single direction |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated operating voltage Ue | 380 V |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation current Ie at 40 °C Tu | 6 A |
| Rated power three-phase motor, inline, at 230 V | - |
| Voltage type for actuating | AC/DC |
| Rated power three-phase motor, inline, at 400 V | 1.5 kW |
| Rated control supply voltage DC | - |
| Rated power three-phase motor, inside delta, at 230 V | - |
| Rated power three-phase motor, inside delta, at 400 V | - |
| Other | |
| Release class | Other |
| Options | |
| Internal bypass | Yes |
| Setting/control | |
| Torque control | No |
| Protection | |
| Integrated motor overload protection | No |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated surrounding temperature without derating | 40 °C |
| Package 1 | |
| volume | 1341,6 cm3 |
| weight | 530 g |
| length | 17,2 cm |
| width | 15 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110667202 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,936 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 14 |
| qmin | 14 |
| um | CT |
| gtin | 23389110667206 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 74,124 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 112 |
| qmin | 112 |
| um | PF |
