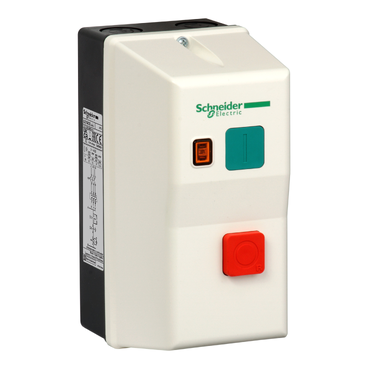

Demaror Nerevers. Dol Capsulat - Tesys Le1-M - 1,8 - 2,6 A - Bobina 230 V C.A.
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Model/type | |
| Number of indicator lights | 1 |
| With transformer | No |
| Number of command positions | 2 |
| Type of motor starter | Direct online starter (DOL) |
| With fuse | No |
| With short-circuit release | No |
| Communication | |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Electrical | |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated operation power at AC-3, 400 V | 1.1 kW |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated operation current Ie | 2.6 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Overload release current setting | 1.8 A |
| Rated operation current at AC-3, 400 V | 2.6 A |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation power at AC-3, 230 V, 3-phase | 0.37 kW |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated power, 575 V, 60 Hz, 3-phase | 1.1 kW |
| Rated power, 460 V, 60 Hz, 3-phase | 0.75 kW |
| Rated control supply voltage DC | - |
| Operating conditions | |
| Ambient temperature, upper operating limit | 40 °C |
| Options | |
| External reset possible | Yes |
| Temperature compensated overload protection | Yes |
| Measurements | |
| Height | 160 mm |
| Width | 78 mm |
| Depth | 108 mm |
| Other | |
| Release class | CLASS 10 A |
| Approval/certification | |
| Coordination class according to IEC 60947-4-3 | - |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | - |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Application | |
| Suitable for emergency stop | No |
| Package 1 | |
| volume | 1518 cm3 |
| weight | 577 g |
| length | 16,5 cm |
| width | 11,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110963052 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,695 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43389110963050 |
