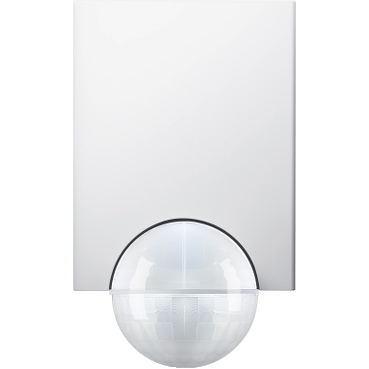

Detector de miscare KNX Argus 220, Alb Polar
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| With bus connection | Yes |
| Number of digital inputs | - |
| Substation input | No |
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Thermoplastic |
| Model/type | |
| Model | Movement sensor |
| Number of channels | 20 |
| Performance | |
| Max. reach frontally | 16 m |
| Max. reach sideways | 12 m |
| Detection angle horizontal | 0 ° |
| Detection angle vertical | - |
| Colour | |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Colour | White |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Options | |
| Switch-off delay self-learning | No |
| Creep-under protection | Yes |
| Teach-function for response value luminosity | No |
| Radio frequency bidirectional | No |
| Operation mode switch | No |
| Animal zone | No |
| Measurements | |
| Diameter reach on floor | 24 m |
| Min. depth of built-in installation box | - |
| Optimum mounting height | 2.5 m |
| Setting/control | |
| Response value luminosity adjustable | Yes |
| Staircase light controller | Yes |
| Other | |
| Min. switch-on time | 1 s |
| Max. duty cycle | 9144 min |
| Electrical | |
| Switching power | - |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Approval/certification | |
| DALI-2 certified | - |
| Package 1 | |
| volume | 2661,552 cm3 |
| weight | 354 g |
| length | 18,3 cm |
| width | 14,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485104881 |
| Package 2 | |
| volume | 42177,84 cm3 |
| weight | 5,806 kg |
| length | 40,2 cm |
| width | 34,4 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43606485104889 |
