Descriere

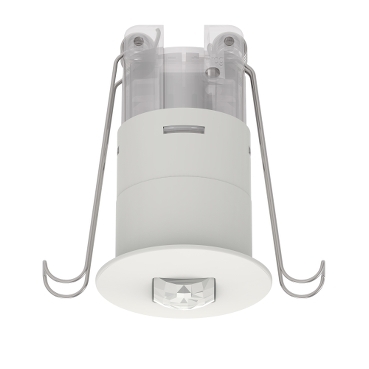

Detectorul de prezenta KNX MTN6303-0019 de la Schneider Electric are culoarea alb cu senzor de detectie frontal, lateral. Acest mod de montare cu detector de prezenta poate fi montat atat pe tavan, cat si incastrat. Tipul de protectie este protectia zonei de fluaj, imbunatatind nivelul de siguranta. Fiind realizat din material plastic, acest detector de prezenta este destul de fiabil si rezistent. Si are un tratament protector al suprafetei netratate. Si este fara mercur si metale grele, care are grija de mediu si de sanatatea ta ca intotdeauna. KNX combina toate functiile principale ale cladirii, cum ar fi iluminatul, incalzirea, aerul conditionat sau umbrirea, intr-un singur sistem inteligent, ceea ce rezulta in economii considerabile de energie si economie de timp pentru instalare.
Documente
Specificatii
| Connection | |
| With bus connection | Yes |
| Number of digital inputs | - |
| Substation input | No |
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Thermoplastic |
| Model/type | |
| Model | Presence detector |
| Number of channels | 6 |
| Performance | |
| Max. reach frontally | 3 m |
| Max. reach sideways | 3 m |
| Detection angle horizontal | 0 ° |
| Detection angle vertical | - |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | White |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Options | |
| Switch-off delay self-learning | Yes |
| Creep-under protection | Yes |
| Teach-function for response value luminosity | Yes |
| Radio frequency bidirectional | No |
| Animal zone | No |
| Operation mode switch | No |
| Measurements | |
| Diameter reach on floor | 6 m |
| Min. depth of built-in installation box | - |
| Optimum mounting height | 2.8 m |
| Setting/control | |
| Response value luminosity adjustable | Yes |
| Staircase light controller | Yes |
| Other | |
| Min. switch-on time | 60 s |
| Max. duty cycle | 255 min |
| Electrical | |
| Switching power | - |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Approval/certification | |
| DALI-2 certified | No |
| Package 1 | |
| volume | 810 cm3 |
| weight | 92 g |
| length | 12 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489818739 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 3,258 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 13606489818736 |
