Descriere

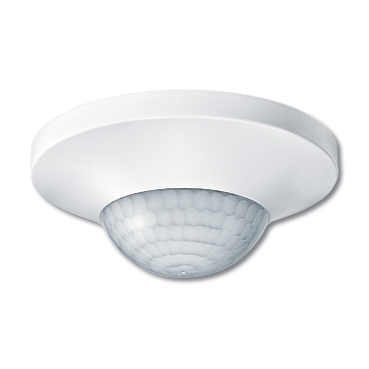

Detectorul de prezenta KNX MTN630919 de la Schneider Electric este alb polar, cu o intarziere de 01 s. Cutia de montaj potrivita poate fi infundata pe suprafata peretelui cu incastrare. Tipul de protectie este protectia zonei de fluaj, imbunatatind nivelul de siguranta. Ciclul de functionare al acestui dispozitiv este de 15300 de minute. Cu distanta maxima detectata de 14 m atunci cand va deplasati. In plus, nu contine halogen, ceea ce este benefic pentru sanatatea dumneavoastra. Si este fara mercur si fara metale grele, avand grija de mediu si de sanatatea ta tot timpul. KNX combina toate functiile principale ale cladirii, cum ar fi iluminatul, incalzirea, aerul conditionat sau umbrirea, intr-un singur sistem inteligent, ceea ce rezulta in economii considerabile de energie si economie de timp pentru instalare.
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Thermoplastic |
| Connection | |
| With bus connection | Yes |
| Number of digital inputs | - |
| Substation input | No |
| Model/type | |
| Model | Presence detector |
| Number of channels | 6 |
| Colour | |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Colour | White |
| Performance | |
| Max. reach frontally | 7 m |
| Max. reach sideways | 7 m |
| Detection angle horizontal | 0 ° |
| Detection angle vertical | - |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Options | |
| Switch-off delay self-learning | No |
| Creep-under protection | Yes |
| Teach-function for response value luminosity | No |
| Radio frequency bidirectional | No |
| Animal zone | No |
| Operation mode switch | No |
| Measurements | |
| Diameter reach on floor | 14 m |
| Min. depth of built-in installation box | - |
| Optimum mounting height | 2.5 m |
| Setting/control | |
| Response value luminosity adjustable | Yes |
| Staircase light controller | Yes |
| Other | |
| Min. switch-on time | 1 s |
| Max. duty cycle | 15300 min |
| Electrical | |
| Switching power | - |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Approval/certification | |
| DALI-2 certified | - |
| Package 1 | |
| volume | 2602,6 cm3 |
| weight | 184 g |
| length | 18,2 cm |
| width | 14,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485099804 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 1,512 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43606485099802 |
